XFD790 TCO

Product key features

  • Ex/Em: 782/805 nm
  • Extinction coefficient: 260,000 cm-1M-1
  • Reactive Group: TCO
  • Click Chemistry Conjugation: Provides rapid and copper-free labeling of tetrazine-modified biomolecules
  • Water Soluble: Minimizes aggregation, enhancing signal clarity for advanced imaging and live-cell studies
  • Reduced Autofluorescence: Long-wavelength emission minimizes background interference, enhancing signal-to-noise ratios in complex biological matrices.
  • Panel Optimization: Well-separated from far-red fluorophores such as iFluor® 647 and allophycocyanin (APC), facilitating precise multicolor fluorescence detection.

Product description

XFD790, manufactured by AAT Bioquest, is a highly efficient near-infrared fluorescent dye that is structurally identical to Alexa Fluor™ 790 (ThermoFisher). Spectrally analogous to indocyanine green (ICG) and IRDye™ 800, XFD790 demonstrates exceptional aqueous solubility and sustained fluorescence stability over a broad pH range (pH 4–10), ensuring consistent and reproducible performance across diverse experimental conditions. Its long-wavelength emission effectively mitigates background autofluorescence, thereby enhancing signal-to-noise ratios in complex biological matrices, including tissue samples. As the longest-wavelength fluorophore in the XFD series, XFD790 offers superior spectral separation from widely used far-red fluorophores such as iFluor® 647, XFD647, and allophycocyanin (APC), facilitating precise multicolor fluorescence analyses. Furthermore, its optical properties make it an excellent candidate for small animal in vivo imaging (SAIVI) and two-color western blot applications using the LI-COR™ Odyssey™ infrared imaging system.

XFD790 TCO is particularly useful for labeling tetrazine-modified biomolecules under copper-free conditions. It reacts with tetrazine-functionalized molecules, forming a stable conjugate via a dihydropyrazine moiety. This click reaction is favored over others due to its extremely fast kinetics and higher yields under mild reaction conditions, making it a popular choice for researchers.

Spectrum

Product family

NameExcitation (nm)Emission (nm)Extinction coefficient (cm -1 M -1)Correction Factor (260 nm)Correction Factor (280 nm)
XFD488 TCO499520730000.30.11
XFD555 TCO5535681500000.080.08
XFD635 TCO633647140,000--
XFD647 TCO6506712390000.000.03
XFD680 TCO6817041840000.000.05
XFD700 TCO6967191920000.000.07
XFD750 TCO7527762400000.000.04
XFD790 acid782805260,0000.090.08
XFD790 alkyne782805260,0000.090.08
XFD790 amine782805260,0000.090.08
XFD790 azide782805260,0000.090.08
XFD790 maleimide782805260,0000.090.08
XFD790 Tetrazine782805260,0000.090.08
Show More (4)
Page updated on April 15, 2025

Ordering information

Price
Unit size
Catalog Number70126
Quantity
Add to cart

Additional ordering information

Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
Technical SupportContact us
Purchase orderSend to sales@aatbio.com
ShippingStandard overnight for United States, inquire for international
Request quotation

Physical properties

Solvent

DMSO

Spectral properties

Correction Factor (260 nm)

0.09

Correction Factor (280 nm)

0.08

Extinction coefficient (cm -1 M -1)

260,000

Excitation (nm)

782

Emission (nm)

805

Storage, safety and handling

H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22

Storage

Freeze (< -15 °C); Minimize light exposure
UNSPSC12171501

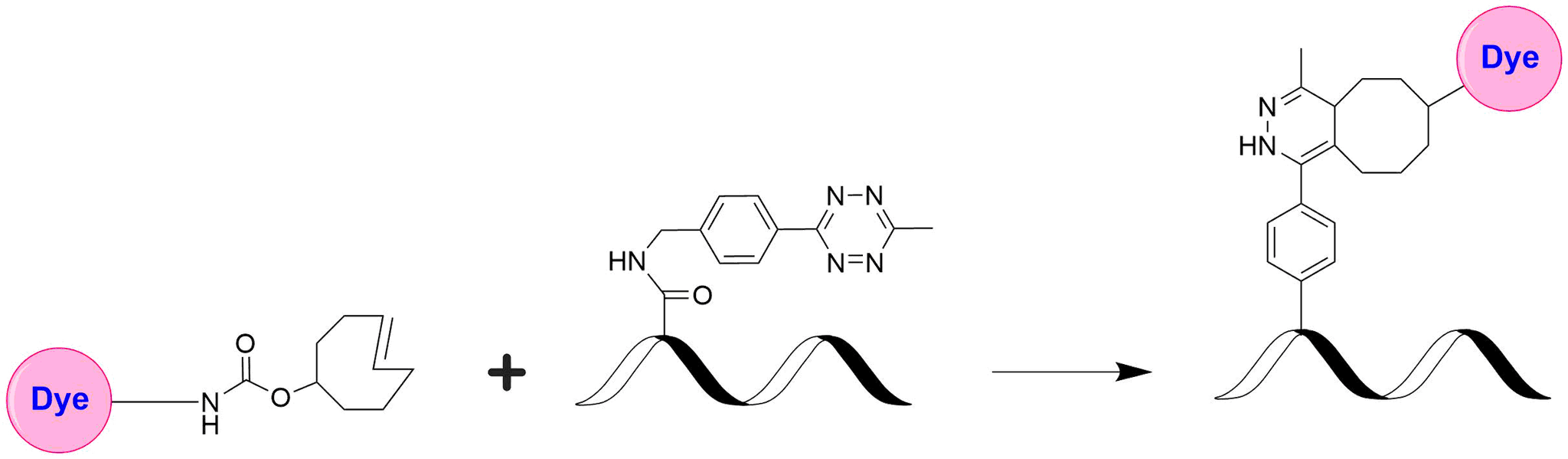

Schematic illustrating the strain‐promoted inverse‐electron‐demand Diels–Alder (iEDDA) reaction between a trans‐cyclooctene (TCO)–dye conjugate and a tetrazine‐modified biomolecule. The TCO–dye adduct selectively and rapidly couples with the tetrazine moiety on the biomolecule to form a stable linkage. This bioorthogonal “click chemistry” reaction is fast, selective, and well‐suited for biocompatible labeling applications.

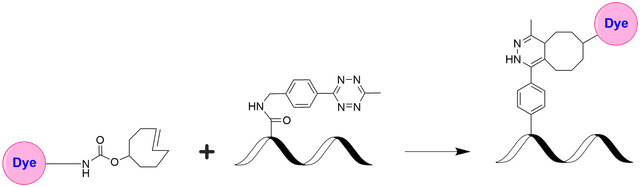

Schematic illustrating the strain‐promoted inverse‐electron‐demand Diels–Alder (iEDDA) reaction between a trans‐cyclooctene (TCO)–dye conjugate and a tetrazine‐modified biomolecule. The TCO–dye adduct selectively and rapidly couples with the tetrazine moiety on the biomolecule to form a stable linkage. This bioorthogonal “click chemistry” reaction is fast, selective, and well‐suited for biocompatible labeling applications.
Schematic illustrating the strain‐promoted inverse‐electron‐demand Diels–Alder (iEDDA) reaction between a trans‐cyclooctene (TCO)–dye conjugate and a tetrazine‐modified biomolecule. The TCO–dye adduct selectively and rapidly couples with the tetrazine moiety on the biomolecule to form a stable linkage. This bioorthogonal “click chemistry” reaction is fast, selective, and well‐suited for biocompatible labeling applications.
