Antibody and Protein Labeling
HeLa cells stained with rabbit anti-tubulin followed by iFluor® 555 goat anti-rabbit IgG, Phalloidin-iFluor® 488 conjugate, and DAPI.
When determining which type of label to choose, focus on the downstream application for which the antibody will be used. Fluorescent tags are used predominantly in cellular imaging, flow cytometry, fluorescent blotting, and immunofluorescence applications. In contrast, enzymatic tags, such as HRP and AP, are commonly used for blotting, ELISAs, and immunohistochemistry applications. Hapten tags such as biotin are the more versatile of the possible tag options as they can be used in protein isolation, purification, and any of the aforementioned applications.
AAT Bioquest offers a comprehensive suite of antibody and protein labeling kits to choose from. Designed for the novice scientist in mind, these kits have the easiest protocols and require the least hands-on experience.
Table of Contents
- Antibody Labeling Kits At-A-Glance
- ReadiLink™ Rapid Antibody Labeling Kits
- 2.1 Key features of the ReadiLink™ Rapid Antibody Labeling Kits
- 2.2 Convenient Design for Maximum Results
- 2.3 High-performance alternative to Lightning-Link®Antibody Labeling Kits
- BSA Compatible ReadiLink™ xtra Rapid Antibody Labeling Kits
- Buccutite™ Protein to Protein Labeling Kits
- 4.1 Key features of the Buccutite™ Rapid Antibody Labeling Kit
- 4.2 High-performance alternative to Lightning-Link®Antibody Labeling Kits
- Product Ordering Information
Antibody Labeling Kits At-A-Glance
Table 1. Comparison of Antibody Labeling Kits
▲ ▼ | ReadiLink™ Kits ▲ ▼ | ReadiLink™ xtra Kits ▲ ▼ | Buccutite™ Kits ▲ ▼ |
Amount of antibody labeled per reaction | 50 µg | 50 µg | 25 µg, 50 µg or 1 mg |
Labeling Chemistry | Targets free amine groups using amine-reactive dyes | Targets free amine groups using amine-reactive dyes | Uses two proprietary linkers to facilitate protein-protein conjugation |
Available labels | iFluor® dyes, mFluor™ dyes, Alexa Fluor® equivalent AF dyes, FITC, Cy3, Cy5, Cy7, Biotin | iFluor® dyes, Alexa Fluor® equivalent AF dyes, FITC, Cy3, Cy5, Cy7 | PE, APC, Tandem Dyes, HRP, AP |
Type of bond between label and antibody | Covalent | Covalent | Covalent |
Compatible with BSA or other stabilizers? | No | Yes | No |
Requires purification? | No | No | No |
Time required for conjugation | 1 hr | 1 hr | 2 hr |
Hands-on-time | ~10 minutes | ~10 minutes | ~15 minutes |
Batch-to-batch variation | Minimal | Minimal | Minimal |
Applications1 | Imaging, FC, IF, WB | Imaging, FC, IF, WB | FC, IF, IHC, WB, ELISA |
- FC = flow cytometry; IF = immunofluorescence; IHC = immunohistochemistry; WB = Western blot; ELISA = enzyme-linked immunosorbent assay.
ReadiLink™ Rapid Antibody Labeling Kits
AAT Bioquest ReadiLink™ Rapid Antibody Labeling Kits provide a quick and convenient method to label microscale volumes of antibodies with our superior iFluor®dyes, mFluor™ dyes, or other labels. The unique chemistry of ReadiLink™ kits enables researchers to effortlessly label and recover 100% of their antibodies without a purification step. Since ReadiLink™ conjugates are covalently labeled, they are stable for long-term storage. They are ideal for demanding applications, including fluorescent microscopy, multi-color imaging, multiplex flow cytometry, primary detection, IHC, FISH, ELISAs, and more.
Key features of the ReadiLink™ Rapid Antibody Labeling Kits
- Label monoclonal antibodies, polyclonal antibodies, or other proteins
- Quick and simple two-step labeling protocol, no chemistry or conjugation experience necessary
- Useful for labeling 100 µg of antibody (two separate labeling reactions of 50 µg antibody)
- 100% antibody recovery, NO purification of the product is required
- Conjugates ready to use in 1 hr, with as little as ~10 minutes of hands-on time
- Choice of iFluor®dyes, mFluor™ dyes, Alexa Fluor®equivalent XFD dyes, FITC, Cy3, Cy5, Cy7, BSA, KLH or biotin
- Avoid using any amine-containing buffers (e.g., Tris or glycine)
- Stabilizing proteins (e.g., BSA or gelatin) must be removed before labeling; for antibody labeling kits compatible with BSA, use ReadiLink™ xtra Rapid Antibody Labeling Kits
Convenient Design for Maximum Results

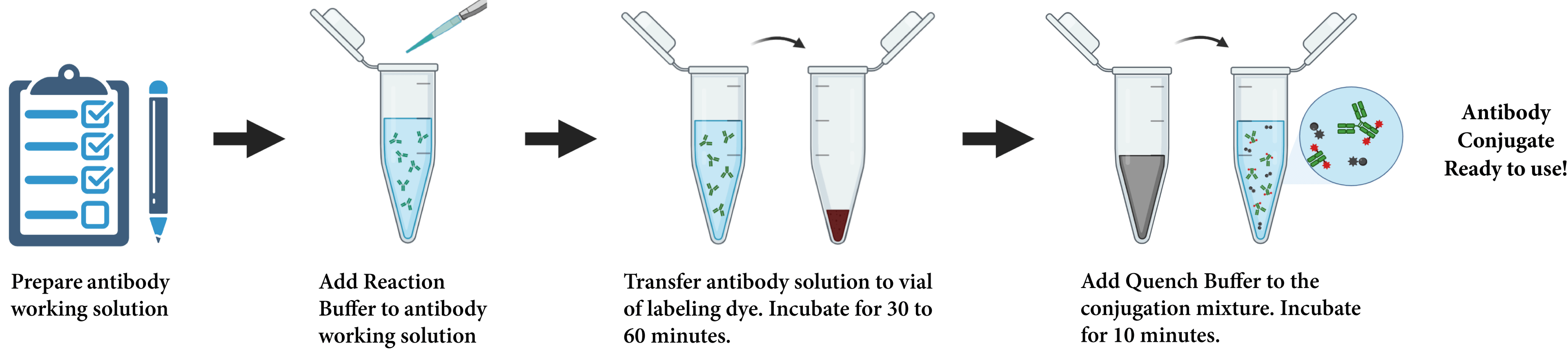

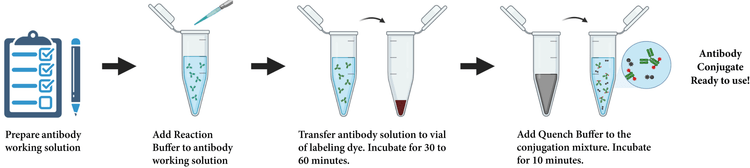

ReadiLink™ Rapid Antibody Labeling Kits utilize amine-reactive labels to prepare covalently labeled conjugates. These reactive labels selectively target and bind to primary amines, such as lysine residues, on the antibody of interest. To label your antibody, mix your antibody solution (concentration ~1 mg/mL) with the ReadiLink™ reaction buffer, add the mixture to the vial of pre-formulated label, and incubate for 30 to 60 minutes. Lastly, add the TQ™-Dyed Quench Buffer to your mixture and mix well. This part is key as it eliminates both background interference and the column purification step. After 10 minutes of incubation, your conjugates are ready to use.
High-performance alternative to Lightning-Link®Antibody Labeling Kits

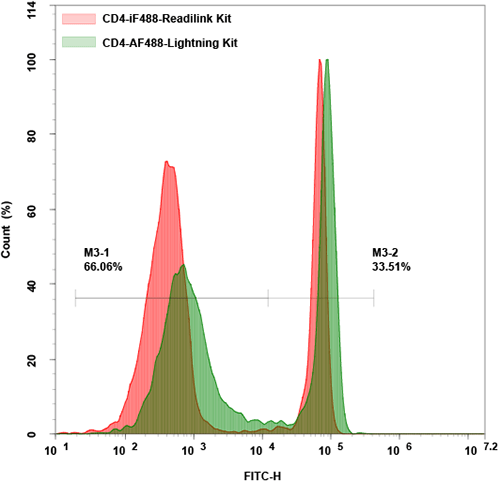

Flow cytometry analysis of human PBMC cells. Anti-human CD4 antibody prepared with ReadiLink™ Rapid iFluor488 Antibody Labeling Kit (Cat No. 1255) or Lightning-Link®Rapid Alexa Fluor ®488. The fluorescence signal was monitored using the ACEA NovoCyte flow cytometer in the FITC channel.
Labeling Kit | CD4(SK3)- Conjugate | Stain Index |
ReadiLink™ Kit | CD4-iFluor®488 Conjugate | 43 |
Lightning-Link®Kit | CD4-Alexa Fluor®488 Conjugate | 26 |
Table 2. ReadiLink™ Rapid Antibody Labeling Kit Selection Guide
Fluorophore ▲ ▼ | Fluorophore Equivalent ▲ ▼ | Ex/Em (nm) ▲ ▼ | Imaging ▲ ▼ | Flow Cytometry ▲ ▼ | Cat No. ▲ ▼ |
mFluor™ Violet 420 | Cascade® Blue | 398/411 | - | Yes | 1105 |
iFluor® 350 | AMCA, Alexa Fluor® 350 | 345/442 | Yes | - | 1220 |
mFluor™ Violet 450 | Pacific Blue® | 403/454 | - | Yes | 1100 |
mFluor™ Violet 510 | - | 414/508 | - | Yes | 1110 |
iFluor® 488 | FITC, Alexa Fluor® 488 | 491/514 | Yes | Yes | 1255 |
FITC | - | 494/520 | Yes | Yes | 1299 |
mFluor™ Violet 540 | Pacific Orange® | 405/537 | - | Yes | 1114 |
Cy3 | - | 555/565 | Yes | - | 1290 |
iFluor® 555 | Cy3, Alexa Fluor® 555 | 552/567 | Yes | - | 1227 |
mFluor™ Blue 570 | R-PE | 553/570 | - | Yes | 1120 |
BSA Compatible ReadiLink™ xtra Rapid Antibody Labeling Kits
ReadiLink™ xtra Rapid Antibody Labeling Kits with BSA compatibility takes labeling primary antibodies to a whole new level of convenience. Utilizing an optimized labeling protocol combined with vials of specially formulated labels, ReadiLink™ xtra kits enable rapid and reproducible labeling of microgram quantities of a primary antibody in the presence of common buffer additives and stabilizing proteins. In just two simple steps and without column purification, covalently label antibodies suitable for use in any immuno-based application.
Key features of the ReadiLink™ xtra Rapid Antibody Labeling Kits
- Compatible with BSA and other stabilizing proteins
- Label monoclonal antibodies, polyclonal antibodies, or other proteins
- Labels 100 µg of antibody (two separate labeling reactions of 50 µg antibody)
- 100% antibody recovery, NO purification of the product is required
- Conjugates ready to use in 1 hr, with as little as ~10 minutes of hands-on time
- Choice of iFluor®dyes, mFluor™ dyes, Alexa Fluor®equivalent XFD dyes, FITC, Cy3, Cy5 or Cy7
Table 3. ReadiLink™ xtra Rapid Antibody Labeling Kits
Name ▲ ▼ | Ex (nm) ▲ ▼ | Em (nm) ▲ ▼ | Unit Size ▲ ▼ | Cat No. ▲ ▼ |
ReadiLink™ xtra Rapid iFluor® 350 Antibody Labeling Kit | 344 | 448 | 2 Labelings | 1950 |
ReadiLink™ xtra Rapid iFluor® 488 Antibody Labeling Kit | 491 | 516 | 2 Labelings | 1955 |
ReadiLink™ xtra Rapid XFD488 Antibody Labeling Kit | 499 | 520 | 2 Labelings | 1978 |
ReadiLink™ xtra Rapid FITC Antibody Labeling Kit | 491 | 516 | 2 Labelings | 1970 |
ReadiLink™ xtra Rapid iFluor® 555 Antibody Labeling Kit | 556 | 569 | 2 Labelings | 1958 |
ReadiLink™ xtra Rapid XFD555 Antibody Labeling Kit | 553 | 568 | 2 Labelings | 1980 |
ReadiLink™ xtra Rapid iFluor® 594 Antibody Labeling Kit | 587 | 603 | 2 Labelings | 1960 |
ReadiLink™ xtra Rapid XFD594 Antibody Labeling Kit | 590 | 618 | 2 Labelings | 1982 |
ReadiLink™ xtra Rapid iFluor® 647 Antibody Labeling Kit | 654 | 669 | 2 Labelings | 1963 |
ReadiLink™ xtra Rapid XFD647 Antibody Labeling Kit | 650 | 671 | 2 Labelings | 1985 |
Buccutite™ Protein to Protein Labeling Kits
Buccutite™ crosslinking technology offers a trouble-free way to covalently label proteins and antibodies with horseradish peroxidase (HRP), alkaline phosphatase (AP), or a phycobiliprotein. Compared to the conventional techniques for protein-protein conjugation, such as the SMCC chemical labeling method, Buccutite™ conjugation is significantly more robust and less demanding. These kits allow optimal labeling of microgram amounts of antibodies (as little as 25 µg per labeling reaction) in less than two hours, with no purification necessary and 100% yield. With Buccutite™ labeling kits, routinely prepare covalently-labeled conjugates that will withstand the rigorous washing techniques generally required in a typical immunoassay (e.g., ELISA, IHC, and Western blot) or flow cytometry application.
Key features of the Buccutite™ Rapid Antibody Labeling Kit
- Label 25 µg up to 1 mg of antibody
- Choice of labels include HRP, AP, phycoerythrin (PE), allophycocyanin (APC), PerCP, PE-tandem dyes, and APC tandem dyes
- Less than 2 hours of labeling time, with no purification required
- 100% antibody recovery
Learn More
High-performance alternative to Lightning-Link®Antibody Labeling Kits

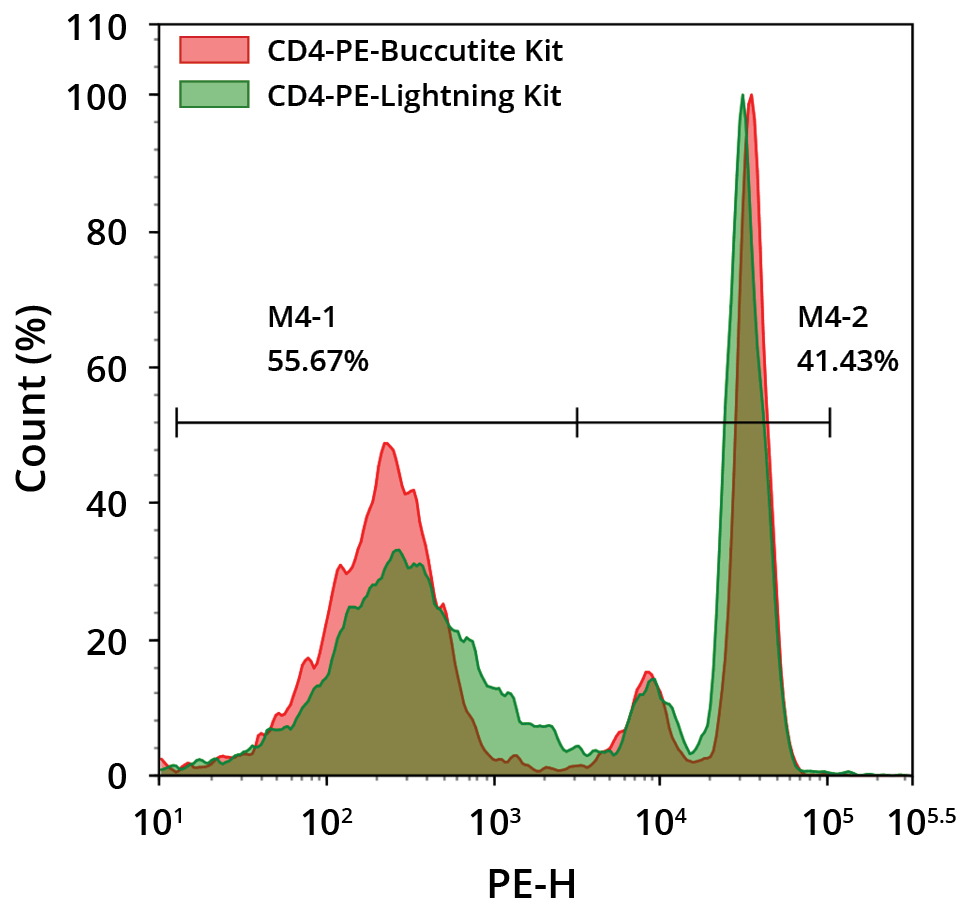

Flow cytometry analysis of human PBMC cells. Anti-human CD4 antibody prepared with Buccutite™ Rapid PE Antibody Labeling Kit (Cat No. 1310) or Lightning-Link®PE. The fluorescence signal was monitored using the ACEA NovoCyte flow cytometer in the FITC channel.
Labeling Kit | CD4(SK3)- Conjugate | Stain Index |
Buccutite™ Kit | CD4-PE 488 Conjugate | 55 |
Lightning-Link®Kit | CD4-PE Conjugate | 28 |
Table 4. Buccutite™ Rapid Antibody Labeling Kits
Name ▲ ▼ | Ex (nm) ▲ ▼ | Em (nm) ▲ ▼ | Unit Size ▲ ▼ | Cat No. ▲ ▼ |
Buccutite™ Rapid Protein Crosslinking Kit *Microscale Optimized for Crosslinking 100 ug Antibody Per Reaction* | - | - | 2 Labelings | 1315 |
Buccutite™ Peroxidase (HRP) Antibody Conjugation Kit *Optimized for Labeling 1 mg Protein* | - | - | 1 Kit | 5504 |
Buccutite™ Peroxidase (HRP) Antibody Conjugation Kit *Optimized for Labeling 100 ug Protein* | - | - | 1 Kit | 5503 |
Buccutite™ Peroxidase (HRP) Antibody Conjugation Kit *Optimized for Labeling 25 ug Protein* | - | - | 2 Labelings | 5505 |
Buccutite™ Rapid PE Antibody Labeling Kit *Microscale Optimized for Labeling 100 ug Antibody Per Reaction* | 565 | 575 | 2 Labelings | 1310 |
Buccutite™ Rapid PE Antibody Labeling Kit *Microscale Optimized for Labeling 25 ug Antibody Per Reaction* | 565 | 575 | 2 Labelings | 1312 |
Buccutite™ Rapid PE-Texas Red Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 100 ug Antibody Per Reaction* | 565 | 600 | 2 Labelings | 1318 |
Buccutite™ Rapid PE-Texas Red Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 25 ug Antibody Per Reaction* | 565 | 600 | 2 Labelings | 1343 |
Buccutite™ Rapid PE-Cy5 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 100 ug Antibody Per Reaction* | 565 | 674 | 2 Labelings | 1322 |
Buccutite™ Rapid PE-Cy5 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 25 ug Antibody Per Reaction* | 565 | 674 | 2 Labelings | 1340 |
Product Ordering Information
Table 5. Ordering Info for Readilink Antibody Labeling Kits Products
Table 6. ReadiLink™ Rapid Production Scale Antibody Labeling Kits
Table 7. XFD Dyes *Same Structure to Alexa Fluor®
Cat# ▲ ▼ | Product Name ▲ ▼ | Ex ▲ ▼ | Em ▲ ▼ | Unit Size ▲ ▼ |
1700 | XFD488 alkyne *Same Structure to Alexa Fluor™ 488 alkyne* | 499 | 520 | 1 mg |
1701 | XFD488 azide *Same Structure to Alexa Fluor™ 488 azide* | 499 | 520 | 1 mg |
1705 | XFD488 amine *Same Structure to Alexa Fluor™ 488 amine* | 499 | 520 | 1 mg |
1706 | XFD532 amine | 534 | 553 | 1 mg |
1707 | XFD555 amine | 553 | 568 | 1 mg |
1708 | XFD568 amine | 579 | 603 | 1 mg |
1709 | XFD647 amine | 650 | 671 | 1 mg |
1710 | XFD750 amine | 752 | 776 | 1 mg |
1715 | XFD594 amine *Same Structure to Alexa Fluor™ 594 amine* | 499 | 520 | 1 mg |
1786 | XFD350 acid *Same Structure to Alexa Fluor™ 350 acid* | 343 | 441 | 5 mg |
