Non-Radioactive Glucose Uptake Assays

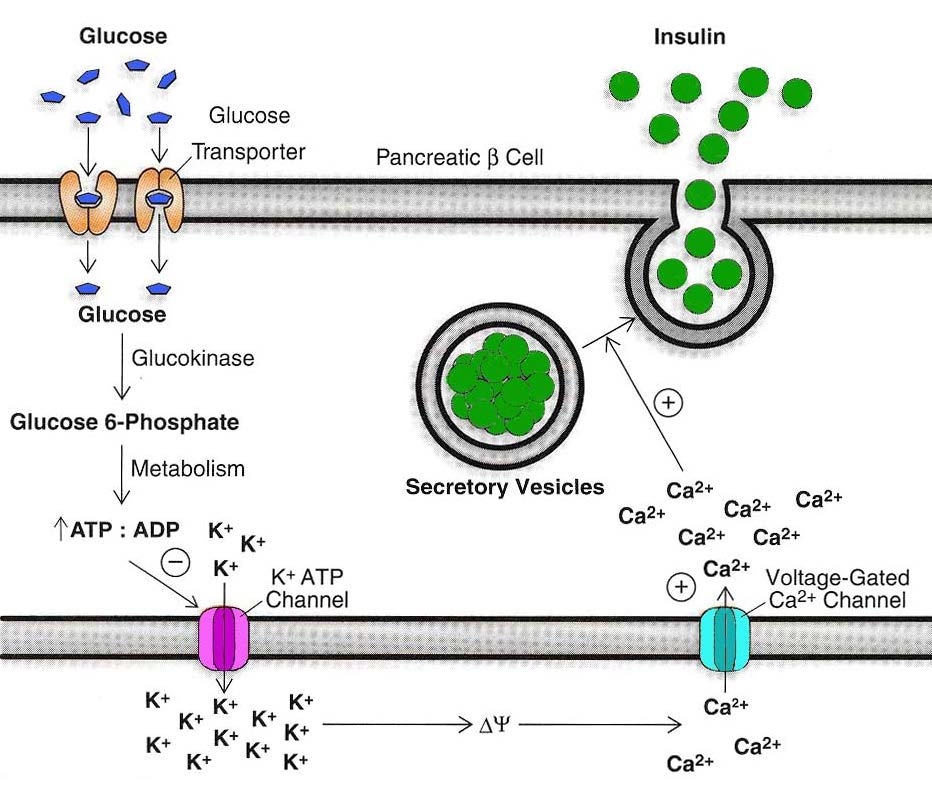

Glucose transportation
Glucose transportation into cells via glucose transporters, Glu 1, Glu 2, Glu 3 and Glu 4.

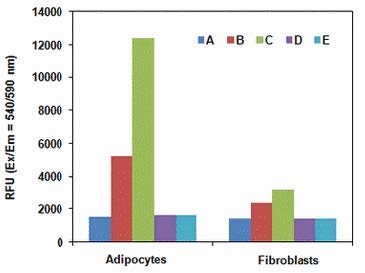

2-DG uptake
2-DG uptake in differentialed 3T3-L1 adipocytes and 3T3-L1 fibroblasts. Assays were performed with Screen Quest™ Fluorimetric Glucose Uptake Assay Kit in a black wall/clear bottom cell culture Poly-D-Lysine plate using a Gemini (Molecular Devices) microplate reader. A: Negative Control, no insulin and no 2-DG treatment; B: 2-DG uptake in the absence of insulin; C: 2-DG uptake in the presence of 1 µM insulin; D: 2- DG uptake in the presence of 1 µM insulin and 200 µM phloretin; E: 2-DG uptake in the presence of 1 µM insulin and 5 mM D-glucose.
Glucose transport systems are responsible for transporting glucose across cell membranes. Measuring the uptake of 2 deoxyglucose (2-DG), a glucose analog, is widely accepted as a reliable method to estimate the amount of glucose uptake and to investigate the regulation of glucose metabolism and insulin resistance. The 2-DG uptake is commonly determined using the non-metabolized 2-DG labeled with tritium or C14. However, the use of a radiolabeled probe is costly and requires a tedious special handling procedure.

AAT Bioquest's Screen Quest™ Colorimetric Glucose Uptake Assay Kit provides a sensitive and non-radioactive glucose uptake assay. In this assay 2-DG is taken up by glucose transporters, and metabolized to 2-DG-6-phosphate (2-DG6P). The non-metabolizable 2-DG6P accumulates in cells and is proportional to glucose uptake. The accumulated 2-DG6P is enzymatically coupled to generate NADPH, which is specifically monitored by a chromogenic NADPH sensor. The signal can be read using an absorption microplate reader by reading the OD ratio of 570 nm to 610 nm.

Based on the same principle, AAT Bioquest's Screen Quest™ Fluorimetric Glucose Uptake Assay Kit provides an even more sensitive and non-radioactive glucose uptake assay in tissues or cultured cells. The accumulated 2-DG6P is enzymatically coupled to generate NADPH, which is specifically monitored by a fluorogenic NADPH sensor. The signal can be read using a fluorescence microplate reader at Ex/Em = 540 nm/590 nm.


Table 1. Product Ordering Information for Non-radioactive Glucose Uptake Assays

Cat No.
Product Name
Ex (nm)
Em (nm)
Unit Size
11300Amplite® Fluorimetric Glucose Oxidase Assay Kit *Red Fluorescence* 571585500 Tests
40005Amplite® Fluorimetric Glucose Quantitation Kit 571585500 Tests
11705Glucose-UDP-Fluorescein Conjugate 490514100 ug
11706Glucose-UDP-(PEG)6-Fluorescein Conjugate 490514100 ug
36503Screen Quest™ Colorimetric Glucose Uptake Assay Kit 575 100 Tests
36500Screen Quest™ Fluorimetric Glucose Uptake Assay Kit 571585100 Tests
