Cal-670™, potassium salt
Calcium measurement is critical for numerous biological investigations. Fluorescent probes that show spectral responses upon binding calcium have enabled researchers to investigate changes in intracellular free calcium concentrations by using fluorescence microscopy, flow cytometry, fluorescence spectroscopy and fluorescence microplate readers. Cal-670™ is a near infrared (NIR) calcium indicator with maximum emission at ~675 nm. It can be well excited with the red lasers at 633 nm or 647 nm with a moderate calcium affinity of Kd ~853 nM. Cal-670™ is one of the very few calcium indicators that can be potentially used for in vivo imaging since it has a NIR fluorescence.
Example protocol
SAMPLE EXPERIMENTAL PROTOCOL

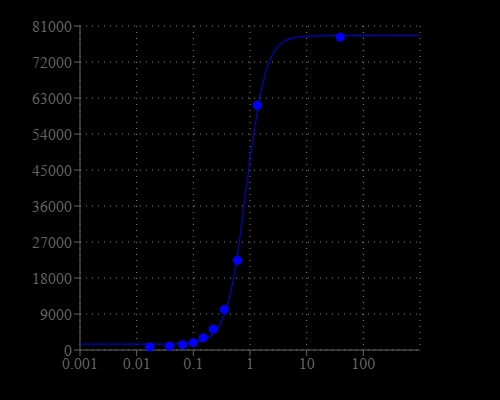

Calcium calibration can be carried out by measuring the fluorescence intensity of the salt form (25 to 50 µM in fluorescence microplate readers) of the indicators in solutions with precisely known free Ca2+ concentrations. Calibration solutions can be used based on 30 mM MOPS EGTA Ca2+ buffer. In general, water contains trace amount of calcium ion. It is highly recommended to use 30 mM MOPS + 100 mM KCl, pH 7.2 as buffer system. One can simply make a 0 and 39 µM calcium stock solutions as listed below, and these 2 solutions are used to make a serial solution of different Ca2+ concentrations.
A: 0 µM calcium: 30 mM MOPS + 100 mM KCl, pH 7.2 buffer + 10 mM EGTA
B: 39 µM calcium: 30 mM MOPS + 100 mM KCl, pH 7.2 buffer + 10 mM EGTA + 10 mM CaCl2
To determine either the free calcium concentration of a solution or the Kd of a single-wavelength calcium indicator, the following equation is used:
[Ca]Free = Kd [F - Fmin] / [Fmax - F]
Where F is the fluorescence intensity of the indicator at a specific experimental calcium level, Fmin is the fluorescence intensity in the absence of calcium and Fmax is the fluorescence intensity of the calciumsaturated probe.
The dissociation constant (Kd) is a measure of the affinity of the probe for calcium. The calcium-binding and spectroscopic properties of fluorescent indicators vary quite significantly in cellular environments compared to calibration solutions. In situ response calibrations of intracellular indicators typically yield Kd values significantly higher than in vitro determinations. In situ calibrations are performed by exposing loaded cells to controlled Ca2+ buffers in the presence of ionophores such as A-23187, 4-bromo A-23187 and ionomycin. Alternatively, cell permeabilization agents such as digitonin or Triton® X-100 can be used to expose the indicator to the controlled Ca2+ levels of the extracellular medium. The fluorescence can be measured at Ex/Em = 650/675 nm. (Cutoff = 665 nm)
A: 0 µM calcium: 30 mM MOPS + 100 mM KCl, pH 7.2 buffer + 10 mM EGTA
B: 39 µM calcium: 30 mM MOPS + 100 mM KCl, pH 7.2 buffer + 10 mM EGTA + 10 mM CaCl2
To determine either the free calcium concentration of a solution or the Kd of a single-wavelength calcium indicator, the following equation is used:
[Ca]Free = Kd [F - Fmin] / [Fmax - F]
Where F is the fluorescence intensity of the indicator at a specific experimental calcium level, Fmin is the fluorescence intensity in the absence of calcium and Fmax is the fluorescence intensity of the calciumsaturated probe.
The dissociation constant (Kd) is a measure of the affinity of the probe for calcium. The calcium-binding and spectroscopic properties of fluorescent indicators vary quite significantly in cellular environments compared to calibration solutions. In situ response calibrations of intracellular indicators typically yield Kd values significantly higher than in vitro determinations. In situ calibrations are performed by exposing loaded cells to controlled Ca2+ buffers in the presence of ionophores such as A-23187, 4-bromo A-23187 and ionomycin. Alternatively, cell permeabilization agents such as digitonin or Triton® X-100 can be used to expose the indicator to the controlled Ca2+ levels of the extracellular medium. The fluorescence can be measured at Ex/Em = 650/675 nm. (Cutoff = 665 nm)
Calculators
Common stock solution preparation
Table 1. Volume of Water needed to reconstitute specific mass of Cal-670™, potassium salt to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.
| 0.1 mg | 0.5 mg | 1 mg | 5 mg | 10 mg | |
| 1 mM | 62.973 µL | 314.863 µL | 629.727 µL | 3.149 mL | 6.297 mL |
| 5 mM | 12.595 µL | 62.973 µL | 125.945 µL | 629.727 µL | 1.259 mL |
| 10 mM | 6.297 µL | 31.486 µL | 62.973 µL | 314.863 µL | 629.727 µL |
Molarity calculator
Enter any two values (mass, volume, concentration) to calculate the third.
| Mass (Calculate) | Molecular weight | Volume (Calculate) | Concentration (Calculate) | Moles | ||||
| / | = | x | = |
Spectrum
Product family
| Name | Excitation (nm) | Emission (nm) | Quantum yield |
| Cal-590™, potassium salt | 574 | 588 | 0.621 |
| Cal-630™, potassium salt | 609 | 626 | 0.371 |
| Cal-520®, potassium salt | 492 | 515 | 0.751 |
| Cal-520FF™, potassium salt | 492 | 515 | 0.751 |
| Cal-520N™, potassium salt | 492 | 515 | 0.751 |
| Cal-500™, potassium salt | 388 | 482 | 0.481 |
| Cal-770™, potassium salt | 758 | 783 | - |
| Cal-520ER™ potassium salt | 492 | 515 | - |
