Tide Fluor™ 3WS maleimide [TF3WS maleimide] *Superior replacement for Cy3*

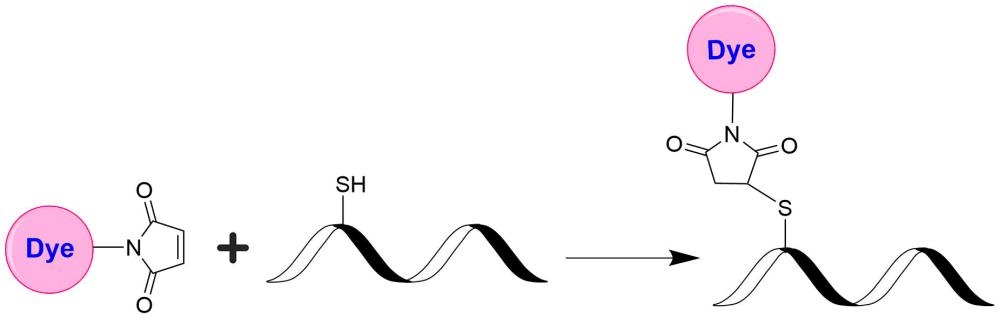

Tide Fluor™ 3WS (TF3WS) family has the spectral properties essentially identical to those of Cy3. Compared to Cy3 probes TF3WS family has better water solubility. It has been used to label the hydrophobic peptides that hasve poor water solubility. Additionally their fluorescence is pH-independent from pH 3 to 11. These characteristics make this new dye family a superior alternative to Cy3. In pairing with our Tide Quencher™ 3 (TQ3), a variety of FRET peptides and nucleotides can be developed for detecting proteases and molecular beacons with enhanced sensitivity and stability. Tide Fluor™ 3WS maleimide (TF3WS maleimide) selectively reacts with thiol. It can be readily used for labeling proteins, peptides and thiol-modified oligos.
Calculators
Common stock solution preparation
Table 1. Volume of DMSO needed to reconstitute specific mass of Tide Fluor™ 3WS maleimide [TF3WS maleimide] *Superior replacement for Cy3* to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.
| 0.1 mg | 0.5 mg | 1 mg | 5 mg | 10 mg | |
| 1 mM | 104.058 µL | 520.291 µL | 1.041 mL | 5.203 mL | 10.406 mL |
| 5 mM | 20.812 µL | 104.058 µL | 208.117 µL | 1.041 mL | 2.081 mL |
| 10 mM | 10.406 µL | 52.029 µL | 104.058 µL | 520.291 µL | 1.041 mL |
Molarity calculator
Enter any two values (mass, volume, concentration) to calculate the third.
| Mass (Calculate) | Molecular weight | Volume (Calculate) | Concentration (Calculate) | Moles | ||||
| / | = | x | = |
Spectrum
Product family
| Name | Excitation (nm) | Emission (nm) | Extinction coefficient (cm -1 M -1) | Quantum yield | Correction Factor (280 nm) |
| Tide Fluor™ 1 maleimide [TF1 maleimide] *Superior replacement for EDANS* | 341 | 447 | 20000 | 0.911 | 0.187 |
| Tide Fluor™ 2 maleimide [TF2 maleimide] *Superior replacement for fluorescein* | 503 | 525 | 75000 | 0.91 | 0.09 |
| Tide Fluor™ 3 maleimide [TF3 maleimide] *Superior replacement for Cy3* | 553 | 578 | 750001 | 0.11 | 0.179 |
| Tide Fluor™ 5WS maleimide [TF5WS maleimide] *Superior replacement for Cy5* | 649 | 663 | 250000 | 0.271 | 0.027 |
| Tide Fluor™ 4 maleimide [TF4 maleimide] *Superior replacement for ROX and Texas Red* | 577 | 602 | 90000 | 0.771 | 0.436 |
| Tide Fluor™ 6WS maleimide [TF6WS maleimide] *Superior replacement for Cy5.5* | 682 | 701 | 220000 | 0.271 | 0.101 |
| Tide Fluor™ 7WS maleimide [TF7WS maleimide] *Superior replacement for Cy7* | 756 | 780 | 275000 | 0.31 | 0.049 |
| Tide Fluor™ 8WS maleimide [TF8WS maleimide] *Near Infrared Emission* | 785 | 801 | 250000 | 0.211 | 0.109 |
| Tide Fluor™ 2WS maleimide [TF2WS Maleimide] *Superior replacement for FITC* | 491 | 516 | 75000 | 0.91 | 0.11 |
Show More (1) | |||||
