iFluor® 647 amine

Name: iFluor® 647 amine
Brand: AAT Bioquest
SKU: 1074
Price: 227 USD
Availability: InStock

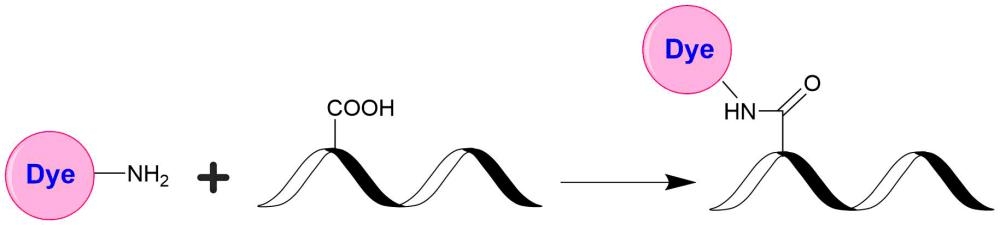

AAT Bioquest's iFluor® dyes are optimized for labeling proteins, particularly antibodies. These dyes are bright, photostable, and have minimal quenching on proteins. They can be well excited by the major laser lines of fluorescence instruments (e.g., 350, 405, 488, 555, and 633 nm). iFluor® 647 dyes have fluorescence excitation and emission maxima of ~656 nm and ~670 nm respectively. iFluor® 647 family has spectral properties essentially identical to those of Cy5®. Compared to Cy5® probes, iFluor® 647 reagents have much stronger fluorescence and higher photostability. Their fluorescence is pH-independent from pH 3 to 11. These spectral characteristics make this new dye family an excellent alternative to Cy5® and Alexa Fluor® 647 (Cy5® and Alexa Fluor® are the trademarks of GE Health Care and Invitrogen). iFluor® 647 amine is stable and used for modifying carbonyl groups (e.g., aldehyde and carboxy groups).

Calculators

Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of iFluor® 647 amine to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

	0.1 mg	0.5 mg	1 mg	5 mg	10 mg
1 mM	97.94 µL	489.702 µL	979.403 µL	4.897 mL	9.794 mL
5 mM	19.588 µL	97.94 µL	195.881 µL	979.403 µL	1.959 mL
10 mM	9.794 µL	48.97 µL	97.94 µL	489.702 µL	979.403 µL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)		Molecular weight		Volume (Calculate)		Concentration (Calculate)		Moles
	/		=		x		=

Spectrum

Open in Advanced Spectrum Viewer

Product family

Name	Excitation (nm)	Emission (nm)	Extinction coefficient (cm ^-1 M ^-1)	Quantum yield	Correction Factor (260 nm)	Correction Factor (280 nm)
iFluor® 350 amine	345	450	20000¹	0.95¹	0.83	0.23
iFluor® 405 amine	403	427	37000¹	0.91¹	0.48	0.77
iFluor® 488 amine	491	516	75000¹	0.9¹	0.21	0.11
iFluor® 555 amine	557	570	100000¹	0.64¹	0.23	0.14
iFluor® 660 amine	663	678	250000¹	0.26¹	0.07	0.08
iFluor® 680 amine	684	701	220000¹	0.23¹	0.097	0.094
iFluor® 700 amine	690	713	220000¹	0.23¹	0.09	0.04
iFluor® 710 amine	716	739	150000¹	0.60¹	0.12	0.07
iFluor® 750 amine	757	779	275000¹	0.12¹	0.044	0.039
iFluor® 790 amine	787	812	250000¹	0.13¹	0.1	0.09
iFluor® 647 Styramide Superior Replacement for Alexa Fluor 647 tyramide	656	670	250000¹	0.25¹	0.03	0.03
iFluor® 647 Tyramide	656	670	250000¹	0.25¹	0.03	0.03
iFluor® 647 TCO	656	670	250000¹	0.25¹	0.03	0.03
iFluor® 647 Tetrazine	656	670	250000¹	0.25¹	0.03	0.03
Show More (5)

Citations

View all 25 citations: Citation Explorer

Circ\_001653 alleviates sepsis associated-acute kidney injury by recruiting BUD13 to regulate KEAP1/NRF2/HO-1 signaling pathway
Authors: Li, Xinxin and Zhou, Wei and Chen, Jianjun and Zhou, Liangliang and Li, Yingbing and Wu, Xufeng and Peng, Xia
Journal: Journal of Inflammation (2024): 1--13

Novel immunogenic cell death inducer combined with autophagy inhibitor to amplify photodynamic synergistic immunotherapy for triple-negative breast cancer
Authors: Yuan, Gankun and Yang, Ruyue and Wen, Wenjing and Wei, Zhaoyi and Song, Meiru and Zhang, Lingyang and Hou, Kun and Liang, Gaofeng
Journal: (2024)

The tandem CD33-CLL1 CAR-T as an approach to treat acute myeloid leukemia: The tandem CLL1/CD33 CAR-T to treat AML
Authors: Wang, Huiru and Feng, Shanglong and Zhu, Yanliang and Zhang, Yafeng and Zhou, Ziwei and Nian, Zhigang and Lu, Xueqin and Peng, Peng and Wu, Shu and Zhou, Li
Journal: Blood Transfusion (2024)

Cryo-shocked tumor cells deliver CRISPR-Cas9 for lung cancer regression by synthetic lethality
Authors: Liu, Feng and Xin, Minhang and Feng, Huiheng and Zhang, Wentao and Liao, Ziyan and Sheng, Tao and Wen, Ping and Wu, Qing and Liang, Tingxizi and Shi, Jiaqi and others,
Journal: Science Advances (2024): eadk8264

Comparing the Malignant Properties of Parental and a knock-in version of HCT116 cell line expressing the CDK2-mutant of eukaryotic Elongation Factor 2 (eEF2)
Authors: Y{\"u}ksel, B{\"u}{\c{s}}ra and T{\"u}rkel, Nezaket and {\c{S}}ahin, Fikrettin and DENIZ, ASLI AYSEN HIZLI
Journal: (2024)

References

View all 49 references: Citation Explorer

Visualizing dengue virus through Alexa Fluor labeling
Authors: Zhang S, Tan HC, Ooi EE.
Journal: J Vis Exp. (2011)

Simultaneous detection of virulence factors from a colony in diarrheagenic Escherichia coli by a multiplex PCR assay with Alexa Fluor-labeled primers
Authors: Kuwayama M, Shigemoto N, Oohara S, Tanizawa Y, Yamada H, Takeda Y, Matsuo T, Fukuda S.
Journal: J Microbiol Methods (2011): 119

Neuroanatomical basis of clinical joint application of "Jinggu" (BL 64, a source-acupoint) and "Dazhong" (KI 4, a Luo-acupoint) in the rat: a double-labeling study of cholera toxin subunit B conjugated with Alexa Fluor 488 and 594
Authors: Cui JJ, Zhu XL, Ji CF, Jing XH, Bai WZ.
Journal: Zhen Ci Yan Jiu (2011): 262

Fluorescent "Turn-on" system utilizing a quencher-conjugated peptide for specific protein labeling of living cells
Authors: Arai S, Yoon SI, Murata A, Takabayashi M, Wu X, Lu Y, Takeoka S, Ozaki M.
Journal: Biochem Biophys Res Commun (2011): 211

Sequential ordering among multicolor fluorophores for protein labeling facility via aggregation-elimination based beta-lactam probes
Authors: Sadhu KK, Mizukami S, Watanabe S, Kikuchi K.
Journal: Mol Biosyst (2011): 1766

Page updated on December 17, 2024

Ordering information

Price
Unit size
Catalog Number	1074
Quantity

Add to cart

Additional ordering information

Telephone	1-800-990-8053
Fax	1-800-609-2943
Email	sales@aatbio.com
International	See distributors
Bulk request	Inquire
Custom size	Inquire
Technical Support	Contact us
Purchase order	Send to sales@aatbio.com
Shipping	Standard overnight for United States, inquire for international

Request quotation

Physical properties

Molecular weight	1021.03
Solvent	DMSO

Spectral properties

Correction Factor (260 nm)	0.03
Correction Factor (280 nm)	0.03
Correction Factor (656 nm)	0.0793
Extinction coefficient (cm ^-1 M ^-1)	250000¹
Excitation (nm)	656
Emission (nm)	670
Quantum yield	0.25¹

Storage, safety and handling

H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
Storage	Freeze (< -15 °C); Minimize light exposure
UNSPSC	12171501
