Cell Meter™ Phosphatidylserine Apoptosis Assay Kit *Green Fluorescence Optimized for Flow Cytometry*
Ordering information
Price | |
Catalog Number | |
Unit Size | |
Quantity |
Additional ordering information
Telephone | 1-800-990-8053 |
Fax | 1-800-609-2943 |
sales@aatbio.com | |
International | See distributors |
Bulk request | Inquire |
Custom size | Inquire |
Shipping | Standard overnight for United States, inquire for international |
Storage, safety and handling
H-phrase | H303, H313, H333 |
Hazard symbol | XN |
Intended use | Research Use Only (RUO) |
R-phrase | R20, R21, R22 |
UNSPSC | 12352200 |
Alternative formats
Related products
Overview | ![]() ![]() |
See also: Apoptosis and Necrosis
Our Cell Meter™ assay kits are a set of tools for monitoring cell viability. There are a variety of parameters that can be used for monitoring cell viability. This particular kit is designed to monitor cell apoptosis through measuring the translocation of phosphatidylserine (PS). In apoptosis, PS is transferred to the outer leaflet of the plasma membrane. The appearance of phosphatidylserine on the cell surface is a universal indicator of the initial/intermediate stages of cell apoptosis and can be detected before morphological changes can be observed. Our proprietary Apopxin™ PS sensor used in this kit is small molecule-based PS sensor. It has green fluorescence upon binding to membrane PS. This particular assay kit is optimized to monitor cell apoptosis using a flow cytometer at FITC channel (green fluorescence).
Platform
Flow cytometer
Excitation | 488 nm laser |
Emission | 530/30 nm filter |
Instrument specification(s) | FITC channel |
Components
Example protocol
AT A GLANCE
Protocol summary
- Prepare cells with test compounds (200 µL/sample)
- Add Apopxin™ Green assay solution
- Incubate at room temperature for 20 - 60 minutes
- Analyze cells using flow cytometer with FL1 channel (Ex/Em = 490/525 nm)
Important notes
Thaw 100X Propidium Iodide (Component C) at room temperature before starting the experiment.
SAMPLE EXPERIMENTAL PROTOCOL
- Treat cells with test compounds for a desired period of time (4-6 hours for Jurkat cells treated with camptothecin) to induce apoptosis. Note: Apopxin™ binding flow cytometric analysis on adherent cells is not routinely tested since specific membrane damage may occur during cell detachment or harvesting. However, methods for utilizing Annexin V for flow cytometry on adherent cell types have been previously reported by Casiola-Rosen et al. and van Engelend et al.
- Centrifuge the cells to get 1-5 × 105 cells/tube.
- Resuspend cells in 200 µL of Assay Buffer (Component B).
- Add 2 µL of Apopxin™ Green (Component A) into the cells.
- Optional: Add 2 µL of 100X Propidium Iodide (Component C) into the cells for necrosis cells.
- Incubate at room temperature for 20 to 60 minutes, protected from light.
- Optional: Add 200 to 300 µL of Assay Buffer (Component B) to increase volume before analyzing the cells with a flow cytometer.
- Monitor the fluorescence intensity using a flow cytometer with FL1 channel (Ex/Em = 490/525 nm). Measure the cell viability using FL2 channel when propidium iodide is added into the cells.
Images
![The detection of binding activity of Apopxin™ Green and phosphatidylserine in Jurkat cells. Jurkat cells were treated without (Blue) or with 20 µM camptothecin (Red) in a 37 °C, 5% CO2 incubator for 5 hours, and then dye loaded with Apopxin™ Green for 15 minutes. The fluorescence intensity of Apopxin™ Green was measured with a FACSCalibur (Becton Dickinson) flow cytometer using the FL1 channel.](/_next/image?url=https%3A%2F%2Fimages.aatbio.com%2Fproducts%2Ffigures-and-data%2Fcell-meter-phosphatidylserine-apoptosis-assay-kit-green-fluorescence-optimized-for-flow-cytometry%2Ffigure-for-cell-meter-phosphatidylserine-apoptosis-assay-kit-green-fluorescence-optimized-for-flow-cytometry_II3Z9.jpg&w=3840&q=75)

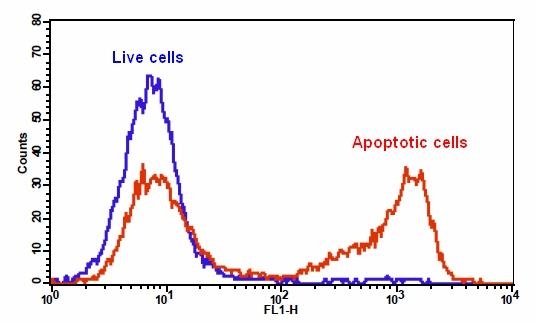

Figure 1. The detection of binding activity of Apopxin™ Green and phosphatidylserine in Jurkat cells. Jurkat cells were treated without (Blue) or with 20 µM camptothecin (Red) in a 37 °C, 5% CO2 incubator for 5 hours, and then dye loaded with Apopxin™ Green for 15 minutes. The fluorescence intensity of Apopxin™ Green was measured with a FACSCalibur (Becton Dickinson) flow cytometer using the FL1 channel.
