iFluor® 810 succinimidyl ester

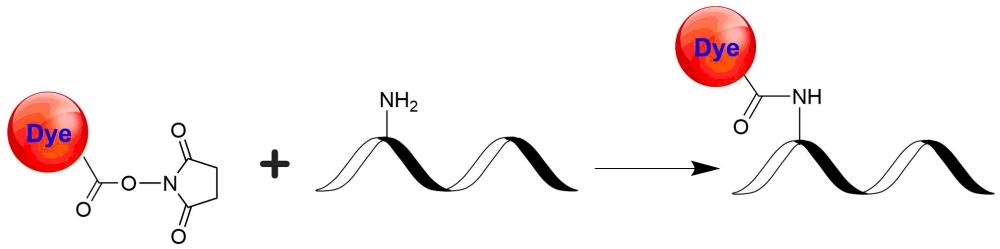

In vivo fluorescence imaging uses a sensitive camera to detect the fluorescence emission from fluorophores in whole-body living small animals. To overcome the photon attenuation in living tissue, fluorophores with long emission at the infrared (IR) region are generally preferred. Recent advances in imaging strategies and reporter techniques for in vivo fluorescence imaging include novel approaches to improve the specificity and affinity of the probes and to modulate and amplify the signal at target sites for enhanced sensitivity. Further emerging developments aim to achieve high-resolution, multimodality, and lifetime-based in vivo fluorescence imaging. Our iFluor® 810 is designed to label proteins and other biomolecules with infrared fluorescence. Conjugates prepared with iFluor® 810 have excitation and emission in the IR range. iFluor® 810 dye emission is well separated from commonly used far-red fluorophores such as Cy5, Cy7, or allophycocyanin (APC), facilitating multicolor analysis. This fluorophore is also useful for small animal in vivo imaging applications or other imaging applications requiring IR detection. iFluor® 810 succinimidyl ester is amine-reactive and can be readily used to conjugate amine-containing biomolecules, particularly antibodies.

Example protocol

PREPARATION OF STOCK SOLUTIONS

Unless otherwise noted, all unused stock solutions should be divided into single-use aliquots and stored at -20 °C after preparation. Avoid repeated freeze-thaw cycles.

1. Protein stock solution (Solution A)

Mix 100 µL of a reaction buffer (e.g., 1 M sodium carbonate solution or 1 M phosphate buffer with pH ~9.0) with 900 µL of the target protein solution (e.g. antibody, protein concentration >2 mg/mL if possible) to give 1 mL protein labeling stock solution.
Note     The pH of the protein solution (Solution A) should be 8.5 ± 0.5. If the pH of the protein solution is lower than 8.0, adjust the pH to the range of 8.0-9.0 using 1 M sodium bicarbonate solution or 1 M pH 9.0 phosphate buffer.
Note     The protein should be dissolved in 1X phosphate buffered saline (PBS), pH 7.2-7.4. If the protein is dissolved in Tris or glycine buffer, it must be dialyzed against 1X PBS, pH 7.2-7.4, to remove free amines or ammonium salts (such as ammonium sulfate and ammonium acetate) that are widely used for protein precipitation.
Note     Impure antibodies or antibodies stabilized with bovine serum albumin (BSA) or gelatin will not be labeled well. The presence of sodium azide or thimerosal might also interfere with the conjugation reaction. Sodium azide or thimerosal can be removed by dialysis or spin column for optimal labeling results.
Note     The conjugation efficiency is significantly reduced if the protein concentration is less than 2 mg/mL. For optimal labeling efficiency the final protein concentration range of 2-10 mg/mL is recommended.

2. iFluor™ 810 SE stock solution (Solution B)

Add anhydrous DMSO into the vial of iFluor™ 810 SE to make a 10 mM stock solution. Mix well by pipetting or vortex.
Note Prepare the dye stock solution (Solution B) before starting the conjugation. Use promptly. Extended storage of the dye stock solution may reduce the dye activity. Solution B can be stored in freezer for two weeks when kept from light and moisture. Avoid freeze-thaw cycles.

SAMPLE EXPERIMENTAL PROTOCOL

This labeling protocol was developed for the conjugate of Goat anti-mouse IgG with iFluor™ 810 SE. You might need further optimization for your particular proteins.
Note Each protein requires distinct dye/protein ratio, which also depends on the properties of dyes. Over labeling of a protein could detrimentally affects its binding affinity while the protein conjugates of low dye/protein ratio gives reduced sensitivity.

Run conjugation reaction

Use 10:1 molar ratio of Solution B (dye)/Solution A (protein) as the starting point: Add 5 µL of the dye stock solution (Solution B, assuming the dye stock solution is 10 mM) into the vial of the protein solution (95 µL of Solution A) with effective shaking. The concentration of the protein is ~0.05 mM assuming the protein concentration is 10 mg/mL and the molecular weight of the protein is ~200KD.
Note We recommend to use 10:1 molar ratio of Solution B (dye)/Solution A (protein). If it is too less or too high, determine the optimal dye/protein ratio at 5:1, 15:1 and 20:1 respectively.
Continue to rotate or shake the reaction mixture at room temperature for 30-60 minutes.

Purify the conjugation

The following protocol is an example of dye-protein conjugate purification by using a Sephadex G-25 column.

Prepare Sephadex G-25 column according to the manufacture instruction.
Load the reaction mixture (From "Run conjugation reaction") to the top of the Sephadex G-25 column.
Add PBS (pH 7.2-7.4) as soon as the sample runs just below the top resin surface.
Add more PBS (pH 7.2-7.4) to the desired sample to complete the column purification. Combine the fractions that contain the desired dye-protein conjugate.
Note For immediate use, the dye-protein conjugate need be diluted with staining buffer, and aliquoted for multiple uses.
Note For longer term storage, dye-protein conjugate solution need be concentrated or freeze dried.

Calculators

Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of iFluor® 810 succinimidyl ester to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

	0.1 mg	0.5 mg	1 mg	5 mg	10 mg
1 mM	63.451 µL	317.253 µL	634.506 µL	3.173 mL	6.345 mL
5 mM	12.69 µL	63.451 µL	126.901 µL	634.506 µL	1.269 mL
10 mM	6.345 µL	31.725 µL	63.451 µL	317.253 µL	634.506 µL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)		Molecular weight		Volume (Calculate)		Concentration (Calculate)		Moles
	/		=		x		=

Spectrum

Open in Advanced Spectrum Viewer

Product family

Name	Excitation (nm)	Emission (nm)	Extinction coefficient (cm ^-1 M ^-1)	Quantum yield	Correction Factor (260 nm)	Correction Factor (280 nm)
iFluor® 350 succinimidyl ester	345	450	20000¹	0.95¹	0.83	0.23
iFluor® 405 succinimidyl ester	403	427	37000¹	0.91¹	0.48	0.77
iFluor® 488 succinimidyl ester	491	516	75000¹	0.9¹	0.21	0.11
iFluor® 514 succinimidyl ester	511	527	75000¹	0.83¹	0.265	0.116
iFluor® 532 succinimidyl ester	537	560	90000¹	0.68¹	0.26	0.16
iFluor® 555 succinimidyl ester	557	570	100000¹	0.64¹	0.23	0.14
iFluor® 594 succinimidyl ester	587	603	200000¹	0.53¹	0.05	0.04
iFluor® 633 succinimidyl ester	640	654	250000¹	0.29¹	0.062	0.044
iFluor® 647 succinimidyl ester	656	670	250000¹	0.25¹	0.03	0.03
iFluor® 660 succinimidyl ester	663	678	250000¹	0.26¹	0.07	0.08
iFluor® 680 succinimidyl ester	684	701	220000¹	0.23¹	0.097	0.094
iFluor® 700 succinimidyl ester	690	713	220000¹	0.23¹	0.09	0.04
iFluor® 750 succinimidyl ester	757	779	275000¹	0.12¹	0.044	0.039
iFluor® 610 succinimidyl ester	610	628	110000¹	0.85¹	0.32	0.49
iFluor® 710 succinimidyl ester	716	739	150000¹	0.60¹	0.12	0.07
iFluor® 790 succinimidyl ester	787	812	250000¹	0.13¹	0.1	0.09
iFluor® 800 succinimidyl ester	801	820	250000¹	0.11¹	0.03	0.08
iFluor® 820 succinimidyl ester	822	850	250000¹		0.11	0.16
iFluor® 860 succinimidyl ester	853	878	250000¹		0.1	0.14
iFluor® 546 succinimidyl ester	541	557	100000¹	0.67¹	0.25	0.15
iFluor® 568 succinimidyl ester	568	587	100000¹	0.57¹	0.34	0.15
iFluor® 430 succinimidyl ester	433	498	40000¹	0.78¹	0.68	0.3
iFluor® 450 succinimidyl ester	451	502	40000¹	0.82¹	0.45	0.27
iFluor® 840 succinimidyl ester	836	879	200000¹	-	0.2	0.09
iFluor® 560 succinimidyl ester	560	571	120000¹	0.57¹	0.0482	0.069
iFluor® 670 succinimidyl ester	671	682	200000¹	0.55¹	0.03	0.033
iFluor® 460 succinimidyl ester	468	493	80000¹	~0.8¹	0.98	0.46
iFluor® 440 succinimidyl ester	434	480	40000¹	0.67¹	0.352	0.229
iFluor® 665 succinimidyl ester	667	692	110,000¹	0.22¹	0.12	0.09
iFluor® 690 succinimidyl ester	685	704	220000¹	0.30¹	0.09	0.06
iFluor® 720 succinimidyl ester	716	740	240000¹	0.14¹	0.15	0.13
iFluor® 740 succinimidyl ester	740	764	225000¹	0.20¹	0.16	0.16
iFluor® 597 succinimidyl ester	598	618	100000¹	0.7¹	0.335	0.514
iFluor® 770 succinimidyl ester	777	797	250000¹	0.16	0.09	0.08
iFluor® 780 succinimidyl ester	784	808	250000¹	0.16¹	0.13	0.12
iFluor® 570 succinimidyl ester	557	570	120000¹	0.58¹	-	-
iFluor® 830 succinimidyl ester	830	867	-	-	-	-
iFluor® 675 succinimidyl ester	683	700	-	-	-	0.066
iFluor® 620 succinimidyl ester	621	636	-	-	-	0.04
iFluor® 605 succinimidyl ester	603	623	-	-	-	-
iFluor® 625 succinimidyl ester	624	640	-	-	-	-
iFluor® 510 succinimidyl ester	511	530	-	-	-	-
iFluor® 540 succinimidyl ester	540	557	-	-	-	0.105
iFluor® 445 succinimidyl ester	446	558	-	-	-	-
iFluor® 500 succinimidyl ester	501	520	-	-	-	-
Show More (36)

Citations

View all 1 citations: Citation Explorer

Nanovesicle delivery to the liver via retinol binding protein and platelet-derived growth factor receptors: how targeting ligands affect biodistribution
Authors: Hsu, Ching-Yun and Chen, Chun-Han and Aljuffali, Ibrahim A and Dai, You-Shan and Fang, Jia-You
Journal: Nanomedicine (2017)

References

View all 18 references: Citation Explorer

A target cell-specific activatable fluorescence probe for in vivo molecular imaging of cancer based on a self-quenched avidin-rhodamine conjugate
Authors: Hama Y, Urano Y, Koyama Y, Kamiya M, Bernardo M, Paik RS, Shin IS, Paik CH, Choyke PL, Kobayashi H.
Journal: Cancer Res (2007): 2791

Fluorescence imaging in vivo: recent advances
Authors: Rao J, Dragulescu-Andrasi A, Yao H.
Journal: Curr Opin Biotechnol (2007): 17

Ex vivo fluorescence imaging of normal and malignant urothelial cells to enhance early diagnosis
Authors: Steenkeste K, Lecart S, Deniset A, Pernot P, Eschwege P, Ferlicot S, Leveque-Fort S, Bri and et R, Fontaine-Aupart MP.
Journal: Photochem Photobiol (2007): 1157

In vivo monitoring the fate of Cy5.5-Tat labeled T lymphocytes by quantitative near-infrared fluorescence imaging during acute brain inflammation in a rat model of experimental autoimmune encephalomyelitis
Authors: Berger C, Gremlich HU, Schmidt P, Cannet C, Kneuer R, Hiest and P, Rausch M, Rudin M.
Journal: J Immunol Methods (2007): 65

A protocol for imaging alternative splicing regulation in vivo using fluorescence reporters in transgenic mice
Authors: Bonano VI, Oltean S, Garcia-Blanco MA.
Journal: Nat Protoc (2007): 2166

Page updated on November 16, 2024

Ordering information

Price
Unit size	1 mg 100 ug 5 mg 10 mg
Catalog Number	1389713897152671576
Quantity

Add to cart

Additional ordering information

Telephone	1-800-990-8053
Fax	1-800-609-2943
Email	sales@aatbio.com
International	See distributors
Bulk request	Inquire
Custom size	Inquire
Technical Support	Contact us
Purchase order	Send to sales@aatbio.com
Shipping	Standard overnight for United States, inquire for international

Request quotation

Physical properties

Molecular weight	1576.03
Solvent	DMSO

Spectral properties

Correction Factor (260 nm)	0.09
Correction Factor (280 nm)	0.15
Extinction coefficient (cm ^-1 M ^-1)	250000¹
Excitation (nm)	811
Emission (nm)	822
Quantum yield	0.05¹

Storage, safety and handling

H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
Storage	Freeze (< -15 °C); Minimize light exposure
UNSPSC	12171501
