Cell Meter™ RX660 fixable viability dye

Discrimination and exclusion of dead cells from live cells allows cleaner separation and identification of cell populations. Cell Meter™ fixable viability dyes are a large family of cell-impermeable fluorescent viability dyes that are optimized to match the major excitation lasers of common flow cytometers, such as 350, 405, 488, 633 and 647 nm. These dyes are impermeant to live cells but permeant to cells with compromised membranes. They irreversibly react with amine- and thiol-containing proteins and other cellular components. Since dead or fixed cells with a compromised membrane more readily react with Cell Meter™ fixable cell stains, thus stain brighter than live cells with an intact membrane, these dyes can be used to assess live vs. dead status of mammalian cells. There are a few factors to be considered when using these dyes, e.g., the titration of each dye to ensure that live cells have minimal to no staining. Cell Meter™ RX660 fixable cell stain is optimized to be excited with the red lasers at 633/647 nm with emission at 660 nm. Compared to other commercially similar viability dyes, this fixable viability dye is much more robust and stable.

Example protocol

AT A GLANCE

Protocol summary
  1. Prepare samples in HHBS (0.5 mL/assay)
  2. Add Cell Meter™ RX660 to the cell suspension
  3. Stain the cells at room temperature for 20 - 60 minutes
  4. Wash the cells
  5. Fix the cells (optional)
  6. Examine the sample with flow cytometer using 660/20 nm filter (APC channel) and/or fluorescence microscope using Cy5 filter set

Important
Thaw at room temperature before starting the experiment.

PREPARATION OF STOCK SOLUTIONS

Unless otherwise noted, all unused stock solutions should be divided into single-use aliquots and stored at -20 °C after preparation. Avoid repeated freeze-thaw cycles.

Cell Meter™ RX660 stock solution (500X)
Add 200 µL of DMSO into the Cell Meter™ RX660 vial to make 500X stock solution.
Note     The unused Cell Meter™ RX660 stock solution should be divided into single use aliquots and stored at -20 °C. Avoid repeated freeze/thaw cycles.

SAMPLE EXPERIMENTAL PROTOCOL

  1. Treat cells as desired.
  2. Wash cells once with HHBS or the azide- and serum/protein-free buffer of your choice.
  3. Resuspend cells at 5 - 10 × 10 6/mL in HHBS or in the azide- and serum/protein-free buffer of your choice.
  4. Add 1 µL of 500X Cell Meter™ RX660 stock solution to 0.5 mL of cells/assay and mix it well.
  5. Incubate at room temperature, 5% CO2 incubator for 20 - 60 minutes, protected from light.
    Note     The optimal stain concentrations and incubation time should be experimentally determined for different cell lines.
  6. Wash cells twice and resuspend cells with HHBS or the buffer of your choice.
  7. Fix cells as desired (optional).
  8. Analyze cells with a flow cytometer using 660/20 nm filter (APC channel) and/or fluorescence microscope using Cy5 filter set.

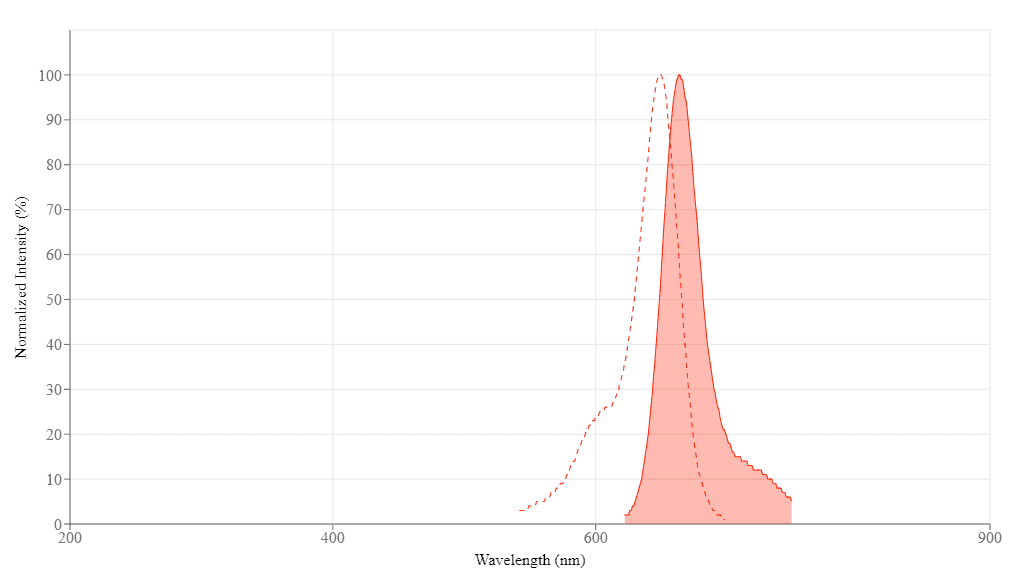

Spectrum

References

View all 50 references: Citation Explorer
PGC-1α Regulates Cell Proliferation and Invasion via AKT/GSK-3β/β-catenin Pathway in Human Colorectal Cancer SW620 and SW480 Cells.
Authors: Yun, Seong-Hoon and Park, Joo-In
Journal: Anticancer research (2020): 653-664
CFSE dilution to study human T and NK cell proliferation in vitro.
Authors: Terrén, Iñigo and Orrantia, Ane and Vitallé, Joana and Zenarruzabeitia, Olatz and Borrego, Francisco
Journal: Methods in enzymology (2020): 239-255
The miR-3940-5p inhibits cell proliferation of gingival mesenchymal stem cells.
Authors: Han, Xiao and Yang, Haoqing and Cao, Yangyang and Ge, Lihua and Han, Nannan and Zhang, Chen and Fan, Zhipeng and Yao, Rui
Journal: Oral diseases (2019): 1363-1373
Toll-Like Receptor 4 (TLR4)/Cyclooxygenase-2 (COX-2) Regulates Prostate Cancer Cell Proliferation, Migration, and Invasion by NF-κB Activation.
Authors: Wang, Wei and Wang, Jiye
Journal: Medical science monitor : international medical journal of experimental and clinical research (2018): 5588-5597
Evaluation of Cell Proliferation and Apoptosis in Immunotoxicity Testing.
Authors: Nagarkatti, Mitzi and Rieder, Sadiye Amcaoglu and Nagarkatti, Prakash S
Journal: Methods in molecular biology (Clifton, N.J.) (2018): 209-230
Page updated on December 2, 2024

Ordering information

Price
Unit size
Catalog Number22530
Quantity
Add to cart

Additional ordering information

Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
Technical SupportContact us
Purchase orderSend to sales@aatbio.com
ShippingStandard overnight for United States, inquire for international
Request quotation

Physical properties

Solvent

DMSO

Spectral properties

Excitation (nm)

649

Emission (nm)

664

Storage, safety and handling

H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22

Storage

Freeze (< -15 °C); Minimize light exposure
UNSPSC12171501

Platform

Flow cytometer

Excitation633, 647 nm laser
Emission660, 20 nm filter
Instrument specification(s)APC channel

Fluorescence microscope

ExcitationCy5 filter set
EmissionCy5 filter set
Recommended plateBlack wall, clear bottom

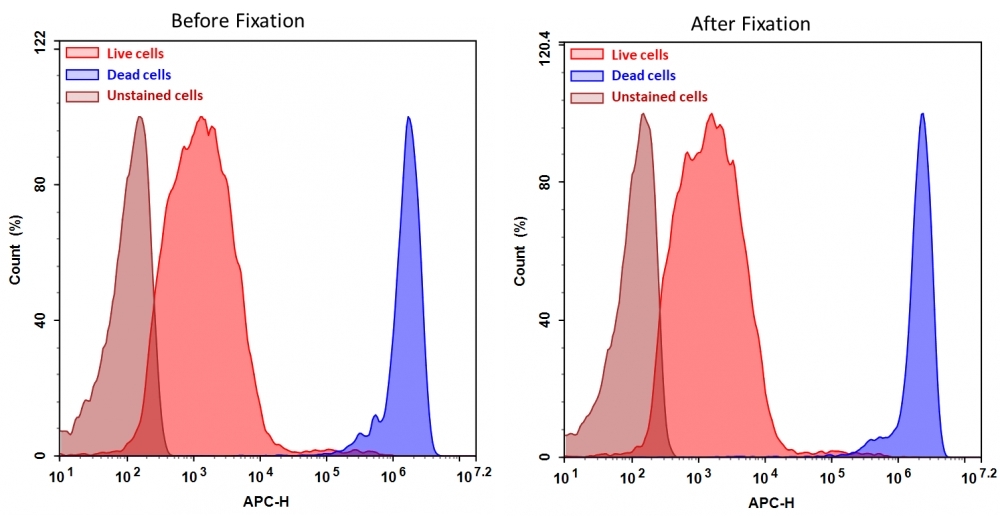

Detection of Jurkat cell viability by Cell Meter&trade; fixable viability dye. Jurkat cells were treated and stained with&nbsp;Cell Meter&trade; RX660 (Cat#22530), and then fixed in 3.7% formaldehyde and analyzed by flow cytometry. &nbsp;The dead cell population (Blue peak)&nbsp; is easily distinguished from the live cell population (Red peak)&nbsp; with APC channel, and nearly identical results were obtained before and after fixation.
