Protocol for Coomassie Staining

Coomassie staining is a widely used technique for visualizing proteins present in SDS-PAGE gels, which is essential for protein detection and analysis in biochemical research. The detection, quantification, and analysis of various proteins allow researchers and scientists to better investigate and understand a wide range of biological processes. Coomassie blue stains are especially useful because of their simplicity, compatibility, and ability to be destained while leaving the proteins uncompromised. Following electrophoresis, Coomassie blue dyes are added to the gels, imparting a negative charge to the proteins, creating blue bands on the gel. Because the gel itself is also dyed, a destaining agent is then added to provide a clearer background. The target proteins are not chemically modified in any way when Coomassie blue stains are used, making them a fundamental agent for clear protein visualization and subsequent applications. The sensitivity of Coomassie blue dyes has proven to be a key component in their regular use, in addition to being affordable, efficient, and user-friendly.

Coomassie blue dyes bind with the basic amino acid residues. Comprised of disulfonated triphenylmethane compounds, there are two primary Coomassie dyes, G-250 and R-250, the latter with two additional methyl groups. Initially, "250" was used and indicated the purity of the dye. G-250, also known as colloidal Coomassie blue, is the more sensitive of the two and contains the suffix "G" for the slight green tint that displays itself in the blue color, while the suffix "R" in R-250 is due to the reddish tint that is present and tends to provide a better resolution. The color variations are related to the various charged states of the dye molecule itself. As the free electrons from the dyes are transferred to the proteins, hydrophobic pockets are exposed, and the non-polar components then binds to these pockets. In addition, the colloidal Coomassie stains do not require methanol or acetic acid for destaining and can be destained with just water.

Equipments:

---

• SDS-PAGE Gels
• Staining Container
• Orbital or Plate Shaker
• Storage Container

Reagents:

---

1. Gel-fixing Solution
   Add 500 mL of 95% (v/v) ethanol and 100 mL of acetic acid to 400 mL of water to make 1L of gel-fixing solution. The final concentrations are 50% (v/v) ethanol in water with 10% (v/v) acetic acid.
2. Gel-washing Solution
   Add 500 mL of methanol to 400 mL of water. Add 100 mL of acetic acid to make 1L of gel-washing solution. The final concentrations are 50% (v/v) of methanol in water with 10% (v/v) acetic acid.
3. Coomassie Stain
   Dissolve 0.4g of Coomassie blue in 200 mL of 40% (v/v) methanol in water while stirring. Filter the solution to remove any insoluble material. Add 200 mL of 20% (v/v) acetic acid in water. The final concentration is 0.1% (w/v) Coomassie blue, 20% (v/v) methanol, and 10% (v/v) acetic acid.
4. Destain Solution
   Add 500 mL of methanol to 400 mL of water. Add 100 mL of acetic acid to make 1L destain solution. The final concentrations are 50% v/v methanol in water with 10% (v/v) acetic acid.
5. Storage Solution
   Add 25 mL of acetic acid to 475 mL of water and mix to make 500 mL of storage solution. The final concentration of acetic acid is 5% (v/v).

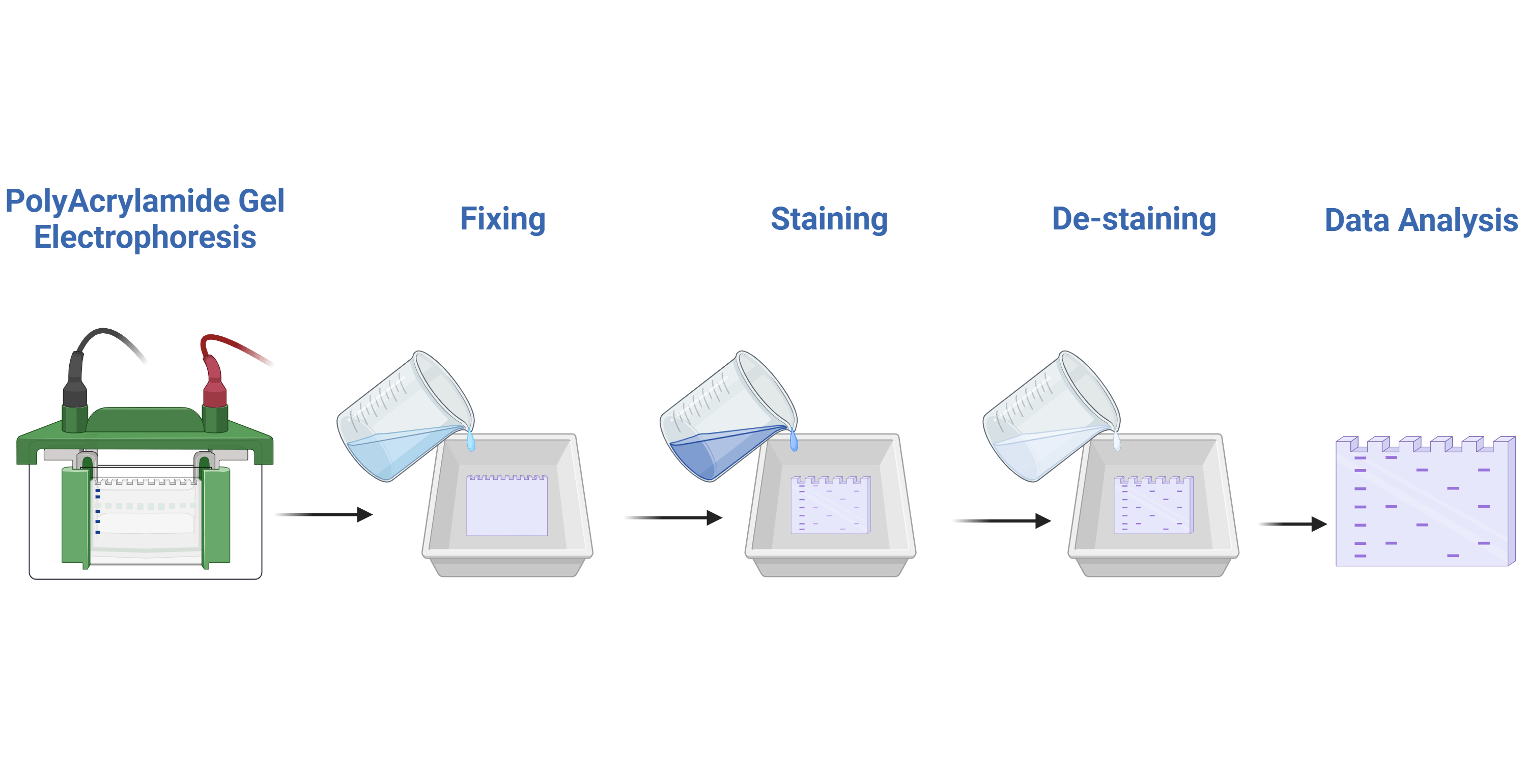

Protocol:

---

1. Electrophoresis
   SDS-PAGE is the process used for resolving proteins according to their molecular weight. Once this step is complete, the gels can be carefully handled and used for staining.
2. Fixing the Gel
   Pour the fixing solution into a container with the gel and let it soak for 10 minutes to one hour. Once soaked, carefully pour off the fixing solution and save it for later use.
3. Washing the Gel
   Cover the gel in the washing solution and gently agitate using the orbital or plate shaker for a minimum of 2 hours, or overnight. This ensures thorough fixation of proteins within the gel. Decant the remaining wash solution and set it aside for staining.
4. Staining the Gel
   Pour Coomassie stain into the gel well and agitate gently on an orbital or plate shaker for a minimum of 3 hours until a uniform blue color develops. Decant the stain solution.
5. Destaining the Gel
   Pour the destaining solution into the container and agitate on an orbital or plate shaker until the background staining diminishes sufficiently to reveal protein bands. Replace destaining solution as and when needed. Decant the destaining solution.
   Note: Using G-250 allows for destaining the gel with water instead of the prepared destaining solution.
6. Storing the Gel
   Finally, pour the storage solution into the gel well and allow it to equilibrate for a minimum of 1 hour. For longer storage, transfer the gel to a polyethylene bag.

Data Analysis

---

Coomassie blue agents can detect 5-10ng per band for some proteins and up to 25-30ng per band for others. Not only do these dyes promote visualization, but they are also able to determine the concentration of proteins in a sample. The intensity of the bands can be correlated with the concentration of the proteins in the sample. However, the correlation between band intensity and exact protein concentration can vary and should not be relied upon for quantitative purposes without proper calibration against known standards.

Proper Handling

---

Proper handling of the gels and all solutions is crucial during staining.

• Cover the gel during each incubation and agitation to avoid contamination and prevent evaporation.
• Wearing gloves and minimizing the handling of the gels is highly recommended.
• Agitation at each step is important to ensure the gel is treated evenly at each phase.
• Handle methanol and acetic acid in a well-ventilated area, following proper safety protocols.

Troubleshooting

---

A few common problems associated with Coomassie blue staining and troubleshooting tips are listed below:

Problem	Possible Reason	Troubleshooting
Reproducibility is difficult	Incubation timings and agitation might not have been uniform.	Maintain consistent timing and agitation each time by documenting exact conditions.
Bands are too faint/ Poor staining	Insufficient amount of protein. Gel is not fixed properly. Under-staining. Over-destaining.	Optimize the protein concentration needed to run on the gel for proper visualization. Use protein standards if needed. Each step holds significance, ensure proper completion of each step during entire staining process.
Unclear gels	Insufficient protein separation during electrophoresis.	Ensure completion of protein separation on gels by monitoring the movement of dye front.
Uneven staining	Uneven distribution of solutions (fixing/staining/de-staining/washing) on the gel.	Gentle but thorough agitation of the gel during incubation making sure that the gel is completely covered with solution.
Blotch marks	Uneven fixing. Contaminants present in the sample/reagents. Mishandling/Over-handling of gels.	Fixing step should be kept uniform with proper agitation. Use high-quality reagents and clean glassware for preparing and handling solutions. Avoid touching the gel as far as possible. If handling, always wear gloves.
Dark blotches	Dye solution not dissolved properly	Proper destaining should remove any dark blotches

Coomassie staining is valued for its simplicity, sensitivity, and compatibility with downstream protein analysis techniques like mass spectrometry, making it indispensable in protein research and diagnostics.

Recent advances in Coomassie staining have focused on enhancing sensitivity and simplifying the process of staining the protein gels. Our ProLite™ FAST Blue Protein Gel Stain is a ready-to-use solution added directly onto the protein lysates. Once electrophoresis is complete, the gel can be directly observed. This avoids the tedious steps involved in staining/de-staining gels.
