XAF Black™ Lipofuscin Autofluorescence Blocker

XAF Black™ Lipofuscin Autofluorescence Blocker is specifically formulated to reduce autofluorescence from lipofuscin. It is a material that can accumulate in aged human and animal tissues. Lipofuscin is a heterogeneous amalgam mainly composed of oxidized proteins (30 to 70%) and lipids such as triglycerides, free fatty acids, cholesterol, and lipoproteins (20 to 50%). Carbohydrates make a small contribution that proportionally may increase with age (4 to 7%). It is generally considered that the protein content has a significant contribution from mitochondria, e.g., ATP synthase subunit residues in congenital ceroid lipofuscinoses. Lipofuscin accumulates in the lysosomes of many cell types with age and/or in patients with severe malnutrition and cancer cachexia. Due to its broad excitation and emission spectra (400 to 700 nm) the presence of lipofuscin complicates the fluorescence imaging of tissues employing exogenous detection fluorophores. The spectrum of lipofuscin overlaps with those of almost all the commonly used detection fluorophores, making it difficult or even impossible to distinguish between specific labelling and autofluorescence caused by lipofuscin. It often hampers fluorescence-based techniques if not properly addressed and corrected for. XAF Black™ Lipofuscin Autofluorescence Blocker can be effectively used to block the autofluorescence of lipofuscin. It can also be used to reduce other background fluorescence, as well as autofluorescence from other sources such as collagen, elastin, and red blood cells. Autofluorescence is the natural emission of biological substances such as NAD(P)H in liver and vitamin A in hepatic stellate cells. Several other endogenous fluorophores are also known to cause autofluorescence in many tissues.

Example protocol

AT A GLANCE

Important Note

Thaw the XAF Black™ Lipofuscin Autofluorescence Blocker DMSO solution to room temperature. If any precipitates are present, heat the vial at 60–70°C for 5 minutes before preparing the working solution.

Protocol Summary
  1. Please follow a standard protocol to perform the following steps: tissue section fixation, deparaffinization, and antigen retrieval.

  2. Add the XAF Black™ Lipofuscin Autofluorescence Blocker working solution and incubate at room temperature for 30 to 60 seconds.

  3. Add mounting medium to the prepared sample, and then observe it under a fluorescence microscope.

PREPARATION OF WORKING SOLUTION

XAF Black™ Lipofuscin Autofluorescence Blocker Working Solution
  1. To prepare the XAF Black™ Lipofuscin Autofluorescence Blocker working solution (1X), mix 50 μL of the XAF Black™ Lipofuscin Autofluorescence Blocker 20X DMSO stock solution with 1 mL of 70% ethanol.

    Note: Protect the working solution from light by either wrapping it in foil or storing it in a dark place.

    Note: For the best results, use this solution within a few hours of preparation.

    Note: Prepare 100 to 200 µL of 1X XAF Black™ Lipofuscin Autofluorescence Blocker working solution for each tissue section to be treated.

SAMPLE EXPERIMENTAL PROTOCOL

Pretreatment with XAF Black™ Lipofuscin Autofluorescence Blocker
  1. Follow your standard protocols to perform fixation, deparaffinization, and/or antigen retrieval on tissue sections.

  2. Wash slides with PBS.

  3. Remove PBS and place the tissue sections in a humidified slide chamber.

  4. Add 100 to 200 µL of XAF Black™ Lipofuscin Autofluorescence Blocker working solution (1X) to each tissue sample, ensuring that the entire sample is fully covered.

  5. Incubate the slides for 30 to 60 seconds.

    Note: The incubation time can be adjusted based on the requirements of the specific application to achieve optimal results.

  6. Wash the slides with PBS twice.

  7. Follow your recommended protocol to perform immunofluorescence staining using antibodies.

    Note: It is not recommended to use buffers containing detergents for blocking, antibody incubation, or washing steps. If detergents are necessary, please follow the post-treatment protocol.

  8. Coverslip the slides using an aqueous-based fluorescence anti-fade mounting medium, such as FluoroQuest™ PLUS Antifade Mounting Medium (AAT Cat# 20008).

    Note: It is not recommended to use organic-based mounting mediums, as they are incompatible with the XAF Black™ Lipofuscin Autofluorescence Blocker.

Posttreatment with XAF Black™ Lipofuscin Autofluorescence Blocker
  1. Follow your standard protocols to perform fixation, deparaffinization, and/or antigen retrieval on tissue sections.

  2. Follow your recommended protocol to perform immunofluorescence staining using antibodies.

    Note: Post-treatment with XAF Black™ Lipofuscin Autofluorescence Blocker may reduce fluorescence signals from antibodies or nuclear stains.

  3. Wash slides with PBS.

  4. Remove PBS and place the tissue sections in a humidified slide chamber.

  5. Add 100 to 200 µL of XAF Black™ Lipofuscin Autofluorescence Blocker working solution (1X) to each tissue sample, ensuring that the entire sample is fully covered.

  6. Incubate the slides for 30 to 60 seconds.

    Note: The incubation time can be adjusted based on the requirements of the specific application to achieve optimal results.

  7. Wash the slides with PBS twice.

  8. Coverslip the slides using an aqueous-based fluorescence anti-fade mounting medium, such as FluoroQuest™ PLUS Antifade Mounting Medium (AAT Cat# 20008).

    Note: It is not recommended to use organic-based mounting mediums, as they are incompatible with the XAF Black™ Lipofuscin Autofluorescence Blocker.

References

View all 49 references: Citation Explorer
Pancreatitis as a Pulmonary Pathology: A Rare Case of a Pancreaticopleural Fistula Presenting as Recurrent Pleural Effusions Causing Mediastinal Shift.
Authors: Saleh, Zidan and Pawar, Resham and Pillai, Ashwin and Abdelwahed, Ahmed and Ibrahim, Omar
Journal: Cureus (2024): e64246
An optimised protocol for the detection of lipofuscin, a versatile and quantifiable marker of cellular senescence.
Authors: Davan-Wetton, Camilla S A and Montero-Melendez, Trinidad
Journal: PloS one (2024): e0306275
Nigella sativa seeds mitigate the hepatic histo-architectural and ultrastructural changes induced by 4-nonylphenol in Clarias gariepinus.
Authors: Abd-Elkareem, Mahmoud and Sayed, Alaa El-Din H and Khalil, Nasser S Abou and Kotob, Mohamed H
Journal: Scientific reports (2023): 4109
Black rice anthocyanin extract enhances the antioxidant capacity in PC12 cells and improves the lifespan by activating IIS pathway in Caenorhabditis elegans.
Authors: Li, Xin and Wang, Xinxin and Wang, Kexin and Yang, Xu and Liu, Xiaozhi and Chen, Jingnan and Li, Jing and Wang, Jilite and Guo, Qingbin and Wang, Hao
Journal: Comparative biochemistry and physiology. Toxicology & pharmacology : CBP (2023): 109533
Abnormal Cholesterol Metabolism and Lysosomal Dysfunction Induce Age-Related Hearing Loss by Inhibiting mTORC1-TFEB-Dependent Autophagy.
Authors: Lee, Yun Yeong and Ha, Jungho and Kim, Young Sun and Ramani, Sivasubramanian and Sung, Siung and Gil, Eun Sol and Choo, Oak-Sung and Jang, Jeong Hun and Choung, Yun-Hoon
Journal: International journal of molecular sciences (2023)
Page updated on April 22, 2025

Ordering information

Price
Unit size
Catalog Number2467
Quantity
Add to cart

Additional ordering information

Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
Technical SupportContact us
Purchase orderSend to sales@aatbio.com
ShippingStandard overnight for United States, inquire for international
Request quotation

Physical properties

Solvent

DMSO

Storage, safety and handling

Certificate of OriginDownload PDF
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22

Storage

Freeze (< -15 °C)

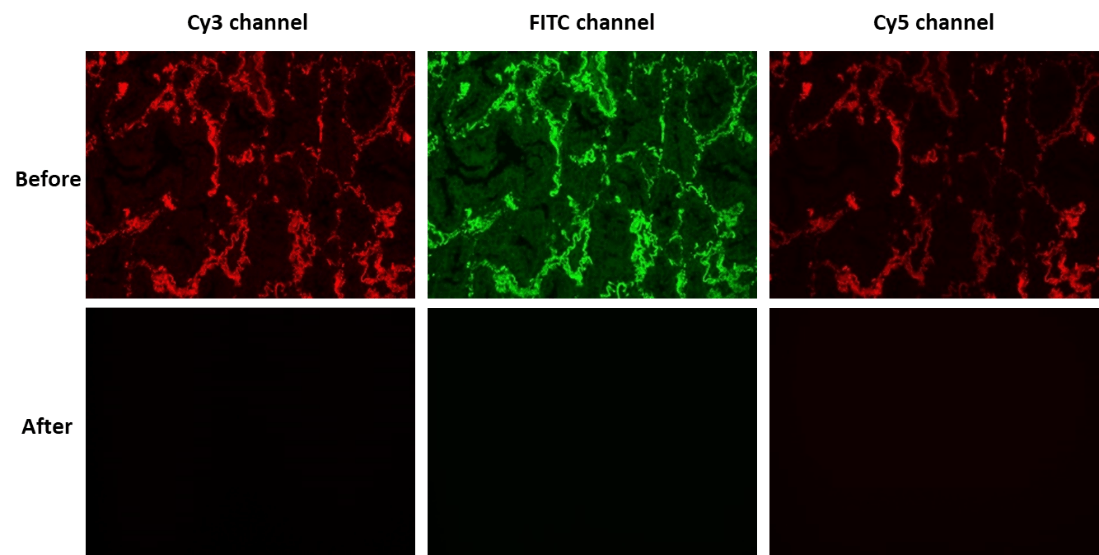

XAF Black™ Lipofuscin Autofluorescence Blocker effectively minimizes non-lipofuscin autofluorescence in human lung adenocarcinoma tissue sections across FITC, Cy®3, and Cy®5 channels. Autofluorescence was imaged using a fluorescence microscope with identical imaging parameters for both untreated and treated samples. The top panel displays tissue sections prior to treatment, while the bottom panel shows the same sections following treatment.
XAF Black™ Lipofuscin Autofluorescence Blocker effectively minimizes non-lipofuscin autofluorescence in human lung adenocarcinoma tissue sections across FITC, Cy®3, and Cy®5 channels. Autofluorescence was imaged using a fluorescence microscope with identical imaging parameters for both untreated and treated samples. The top panel displays tissue sections prior to treatment, while the bottom panel shows the same sections following treatment.
XAF Black™ Lipofuscin Autofluorescence Blocker effectively minimizes non-lipofuscin autofluorescence in human lung adenocarcinoma tissue sections across FITC, Cy®3, and Cy®5 channels. Autofluorescence was imaged using a fluorescence microscope with identical imaging parameters for both untreated and treated samples. The top panel displays tissue sections prior to treatment, while the bottom panel shows the same sections following treatment.
