ReadiUse™ Preactivated PE-iFluor® 660 Tandem
Ordering information
Price | |
Catalog Number | |
Unit Size | |
Quantity |
Additional ordering information
Telephone | 1-800-990-8053 |
Fax | 1-800-609-2943 |
sales@aatbio.com | |
International | See distributors |
Bulk request | Inquire |
Custom size | Inquire |
Shipping | Standard overnight for United States, inquire for international |
Physical properties
Solvent | Water |
Spectral properties
Absorbance (nm) | 566 |
Extinction coefficient (cm -1 M -1) | 1960000 |
Excitation (nm) | 565 |
Emission (nm) | 695 |
Storage, safety and handling
H-phrase | H303, H313, H333 |
Hazard symbol | XN |
Intended use | Research Use Only (RUO) |
R-phrase | R20, R21, R22 |
Storage | Refrigerated (2-8 °C); Minimize light exposure |
UNSPSC | 12171501 |
Related products
Overview | ![]() ![]() |
Absorbance (nm) 566 | Extinction coefficient (cm -1 M -1) 1960000 | Excitation (nm) 565 | Emission (nm) 695 |
R-Phycoerythrin (PE) is isolated from red algae. Its primary absorption peak is at 565 nm with secondary peaks at 496 and 545 nm. Our RPE-iFluor® 660 Tandem is an excellent color for multicolor analysis of multiple targets with flow cytometry. It has a unique emission located between the emission Cy5 and that of Cy5.5, providing a new color for spectral flow cytometry. ReadiUse™ Preactivated PE-iFluor® 660 Tandem is an activated PE protein, and can be easily conjugated to antibodies with much higher conjugation yield than the conventional PE.
Components
Example protocol
AT A GLANCE
Important PE-iFluor™ 660 Tandem was premodified with our Buccutite™ FOL. Your antibody (or other proteins) is modified with our Buccutite™ MTA to give MTA-modified protein. The MTA-modified protein readily reacts with FOL-modified PE-iFluor™ 660 Tandem (provided) to give the desired PE-iFluor™ 660 Tandem-antibody conjugate.
SAMPLE EXPERIMENTAL PROTOCOL
Preparation of pre-activated Antibody with Buccutite™ MTA
- Reconstitute Buccutite™ MTA in DMSO at ~10 mg/mL.
Note Store unused MTA at -20 °C; it can be used for up to two freeze and thaw cycles. - Prepare target antibody (Ab) in pH = 8.5 - 9.0 buffer at a concentration above 1 mg/ml.
- Add the MTA to Ab solution at the ratio of 8 - 10 µg MTA/100 µg Ab.
- Mix well and react at room temperature for 60 minutes, rotating during the reaction.
- Purify the reaction mixture with a desalting column to remove any unreacted MTA. Exchange the buffer to PBS or another buffer of your choice.
- Collect the MTA-activated Ab. Estimate the concentration by 70% yield of the original starting amount.
Conjugate with Pre-activated PE-iFluor™ 660 Tandem
- Reconstitute pre-activated PE-iFluor™ 660 Tandem in 100 µL ddH2O to 10 mg/mL.
Note Reconstituted pre-activated PE-iFluor™ 660 Tandem is not stable and can not be stored for more than one month. - Add pre-activated PE-iFluor™ 660 Tandem directly to MTA-activated target Ab solution at the ratio of 300 µg PE-iFluor™ 660 Tandem/100 µg MTA-activated Ab.
- Rotate the mixture for 1 - 2 hours at room temperature.
- The Ab/PE--iFluor™ 660 Tandem conjugates are now ready to use.
Note The antibody conjugate should be stored at >0.5 mg/mL in the presence of a carrier protein (e.g., 0.1% bovine serum albumin) and 0.02-0.05% sodium azide.
Note The Ab/PE-iFluor™ 660 Tandem can be stored at 4 °C for two months. - Optional: Ab/PE-iFluor™ 660 Tandem can be further purified through size exclusion chromatography to get better performance.
Spectrum
Open in Advanced Spectrum Viewer
![spectrum](/_next/image?url=https%3A%2F%2Fimages.aatbio.com%2Fspectra%2Fpe_ifluor_660.png&w=2048&q=50)
![spectrum](/_next/image?url=https%3A%2F%2Fimages.aatbio.com%2Fspectra%2Fpe_ifluor_660.png&w=2048&q=50)
Spectral properties
Absorbance (nm) | 566 |
Extinction coefficient (cm -1 M -1) | 1960000 |
Excitation (nm) | 565 |
Emission (nm) | 695 |
Product Family
Name | Excitation (nm) | Emission (nm) | Extinction coefficient (cm -1 M -1) |
ReadiUse™ Preactivated PE-iFluor® 647 Tandem | 565 | 666 | 1960000 |
ReadiUse™ Preactivated PE-iFluor® 750 Tandem | 565 | 778 | 1960000 |
ReadiUse™ Preactivated PE-iFluor® 594 Tandem | 565 | 606 | 1960000 |
ReadiUse™ Preactivated PE-iFluor® 700 Tandem | 565 | 708 | 1960000 |
Images
![Our preactivated PE-iFluor® 660 Tandem was premodified with our Buccutite™ FOL (provided). Your antibody (or other proteins) is modified with our Buccutite™ MTA (provided as free sample) to give MTA-modified protein (such as antibody). The MTA-modified protein readily reacts with FOL-modified PE-iFluor® 660 Tandem (provided) to give the desired PE-iFluor® 660 Tandem-antibody conjugate in much higher yield than the SMCC chemistry. In addition our preactivated PE-iFluor® 660 Tandem reacts with MTA-modified biopolymers at much lower concentrations than the SMCC chemistry.](/_next/image?url=https%3A%2F%2Fimages.aatbio.com%2Fproducts%2Ffigures-and-data%2Freadiuse-preactivated-pe-ifluor-660-tandem%2Ffigure-for-readiuse-preactivated-pe-ifluor-660-tandem_gxp4p.jpg&w=3840&q=75)

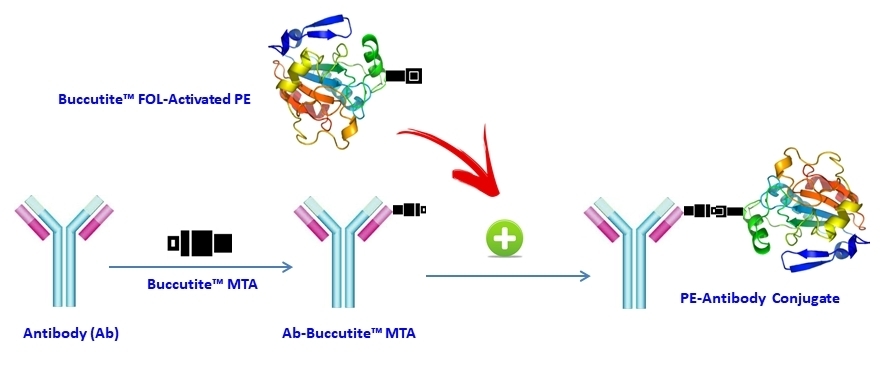

Figure 1. Our preactivated PE-iFluor® 660 Tandem was premodified with our Buccutite™ FOL (provided). Your antibody (or other proteins) is modified with our Buccutite™ MTA (provided as free sample) to give MTA-modified protein (such as antibody). The MTA-modified protein readily reacts with FOL-modified PE-iFluor® 660 Tandem (provided) to give the desired PE-iFluor® 660 Tandem-antibody conjugate in much higher yield than the SMCC chemistry. In addition our preactivated PE-iFluor® 660 Tandem reacts with MTA-modified biopolymers at much lower concentrations than the SMCC chemistry.
