iFluor® 555 TCO
Ordering information
Price | |
Catalog Number | |
Unit Size | |
Quantity |
Additional ordering information
Telephone | 1-800-990-8053 |
Fax | 1-800-609-2943 |
sales@aatbio.com | |
International | See distributors |
Bulk request | Inquire |
Custom size | Inquire |
Shipping | Standard overnight for United States, inquire for international |
Physical properties
Molecular weight | 1236.49 |
Solvent | DMSO |
Spectral properties
Correction Factor (260 nm) | 0.23 |
Correction Factor (280 nm) | 0.14 |
Extinction coefficient (cm -1 M -1) | 1000001 |
Excitation (nm) | 557 |
Emission (nm) | 570 |
Quantum yield | 0.641 |
Storage, safety and handling
H-phrase | H303, H313, H333 |
Hazard symbol | XN |
Intended use | Research Use Only (RUO) |
R-phrase | R20, R21, R22 |
Storage | Freeze (< -15 °C); Minimize light exposure |
UNSPSC | 12171501 |
Overview | ![]() ![]() |
See also: iFluor® Dyes and Kits
Molecular weight 1236.49 | Correction Factor (260 nm) 0.23 | Correction Factor (280 nm) 0.14 | Extinction coefficient (cm -1 M -1) 1000001 | Excitation (nm) 557 | Emission (nm) 570 | Quantum yield 0.641 |
The tetrazine-trans-cyclooctene (TCO) ligation constitutes a non-toxic biomolecule labeling method of unparalleled speed. A tetrazine-functionalized molecule reacts with a TCO-functionalized molecule, forming a stable conjugate via a dihydropyrazine moiety. This has gained popularity due to its extremely fast kinetics. AAT Bioquest offers a group of tetrazine- and TCO-containing dyes for exploring various biological systems that can use this powerful click reaction. iFluor® 555-TCO can be readily used to label tetrazine-modified biological molecules for fluorescence imaging and other fluorescence-based biological applications. The peptide and oligo conjugates prepared with iFluor® 555 dye are far superior to the conjugates of other spectrally similar dyes, such as the popular Cy3 and Alexa Fluor® 555. iFluor® 555 conjugates are significantly brighter and much more photostable than the corresponding conjugates of Cy3 and Alexa Fluor® 555 (Alexa Fluor® is the trademark of Invitrogen).
Calculators
Common stock solution preparation
Table 1. Volume of DMSO needed to reconstitute specific mass of iFluor® 555 TCO to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.
0.1 mg | 0.5 mg | 1 mg | 5 mg | 10 mg | |
1 mM | 80.874 µL | 404.37 µL | 808.741 µL | 4.044 mL | 8.087 mL |
5 mM | 16.175 µL | 80.874 µL | 161.748 µL | 808.741 µL | 1.617 mL |
10 mM | 8.087 µL | 40.437 µL | 80.874 µL | 404.37 µL | 808.741 µL |
Molarity calculator
Enter any two values (mass, volume, concentration) to calculate the third.
Mass (Calculate) | Molecular weight | Volume (Calculate) | Concentration (Calculate) | Moles | ||||
/ | = | x | = |
Spectrum
Open in Advanced Spectrum Viewer
![spectrum](/_next/image?url=https%3A%2F%2Fimages.aatbio.com%2Fspectra%2Fifluor_555.png&w=2048&q=50)
![spectrum](/_next/image?url=https%3A%2F%2Fimages.aatbio.com%2Fspectra%2Fifluor_555.png&w=2048&q=50)
Spectral properties
Correction Factor (260 nm) | 0.23 |
Correction Factor (280 nm) | 0.14 |
Extinction coefficient (cm -1 M -1) | 1000001 |
Excitation (nm) | 557 |
Emission (nm) | 570 |
Quantum yield | 0.641 |
Product Family
Name | Excitation (nm) | Emission (nm) | Extinction coefficient (cm -1 M -1) | Quantum yield | Correction Factor (260 nm) | Correction Factor (280 nm) |
iFluor® 555 maleimide | 557 | 570 | 1000001 | 0.641 | 0.23 | 0.14 |
iFluor® 555 amine | 557 | 570 | 1000001 | 0.641 | 0.23 | 0.14 |
iFluor® 555 hydrazide | 557 | 570 | 1000001 | 0.641 | 0.23 | 0.14 |
iFluor® 555 alkyne | 557 | 570 | 1000001 | 0.641 | 0.23 | 0.14 |
iFluor® 555 azide | 557 | 570 | 1000001 | 0.641 | 0.23 | 0.14 |
iFluor® 555 Styramide *Superior Replacement for Alexa Fluor 555 tyramide and Opal 570* | 557 | 570 | 1000001 | 0.641 | 0.23 | 0.14 |
iFluor® 555 Tyramide | 557 | 570 | 1000001 | 0.641 | 0.23 | 0.14 |
iFluor® 488 TCO | 491 | 516 | 750001 | 0.91 | 0.21 | 0.11 |
iFluor® 594 TCO | 587 | 603 | 2000001 | 0.531 | 0.05 | 0.04 |
Show More (2) |
Images
![The tetrazine-trans-cyclooctene (TCO) ligation constitutes a non-toxic biomolecule labeling method of unparalleled speed. A tetrazine-functionalized molecule reacts with a TCO-functionalized molecule, forming a stable conjugate via a dihydropyrazine moiety. This has gained popularity due to its extremely fast kinetics. iFluor® 555 TCO can be readily used to label tetrazine-modified biological molecules for fluorescence imaging and other fluorescence-based biochemical analysis.](/_next/image?url=https%3A%2F%2Fimages.aatbio.com%2Fproducts%2Ffigures-and-data%2Fifluor-555-tco%2Ffigure-for-ifluor-555-tco_gjkpi.jpg&w=3840&q=75)

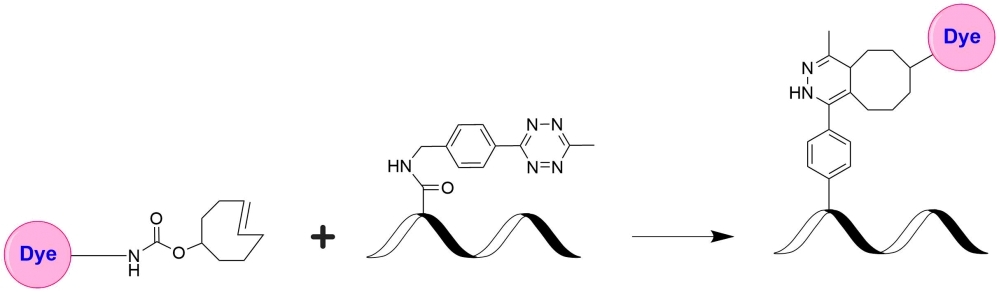

Figure 1. The tetrazine-trans-cyclooctene (TCO) ligation constitutes a non-toxic biomolecule labeling method of unparalleled speed. A tetrazine-functionalized molecule reacts with a TCO-functionalized molecule, forming a stable conjugate via a dihydropyrazine moiety. This has gained popularity due to its extremely fast kinetics. iFluor® 555 TCO can be readily used to label tetrazine-modified biological molecules for fluorescence imaging and other fluorescence-based biochemical analysis.
