Covipyte™ EN450

Coronaviruses (CoVs) can infect humans and multiple species of animals, causing a wide spectrum of diseases. In late 2019, a novel coronavirus, termed severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) was determined as a cause for several cases of respiratory disease (Covid-19). Even though most infected patients only suffer from mild symptoms such as fever and cough associated with a good prognosis, the disease can progress into fatal cases of pneumonia and acute respiratory failure, especially in older males with comorbidities. Covid-19 rapidly spread worldwide. As of May 31st, 2022, more than 6.2 million people have died from coronavirus worldwide, and ~530 million cases have been reported. Coronavirus is a single-stranded RNA positive-strand envelope type B coronavirus. Like the other two coronaviruses that cause SARS (Severe Acute Respiratory Syndrome) and MERS (Middle East Respiratory Syndrome), SARS-CoV-2 encodes non-structural, structural, and accessory proteins. Non-structural proteins include 3-chymotrypsin-like protease (3CLpro), papain-like protease, helicase, and RNA-dependent RNA polymerase (RNA -dependent RNA polymerase (RdRp). Structural proteins include spike glycoproteins. Papain in coronavirus operates on more than 11 cleavage sites on the large polyprotein 1ab. Processing of polyproteins translated from viral RNA is essential, therefore, the main proteases are identified as an attractive drug targets for preventing virus imitation. Papain-like protease (PLpro) of coronaviruses carries out proteolytic maturation of non-structural proteins that play a role in replication of the virus and performs deubiquitination of host cell factors to scuttle antiviral responses. Covipyte™ EN450 is a peptide substrate containing 9 amino acid sequence (RELNGGAPI) that can be cleaved by coronavirus PLpro. The dark-FRET peptide contains Edans (donor) and Dabcyl (quencher) on the N-and C-terminals respectively where the fluorescence of Edans is effectively quenched by Dabcyl when the peptide is intact. When the peptide is hydrolyzed by coronavirus proteases, the Edans fragment generates significantly enhanced fluorescence since its fluorescence is no longer quenched by Dabcyl. The activity of coronavirus proteases can be effectively monitored by the fluorescence intensity of Edans. Covipyte™ EN450 is a convenient tool for screening and studying kinetics of PLpro inhibitors.

Example protocol

PREPARATION OF STOCK SOLUTIONS

Unless otherwise noted, all unused stock solutions should be divided into single-use aliquots and stored at -20 °C after preparation. Avoid repeated freeze-thaw cycles.

Covipyte™ EN450 stock solution (200X)
Add 25 µL (For cat# 13545) or 250 µL (For cat# 13546) DMSO to Covipyte™ EN450 vial.
Note     Make single use aliquots and store at -20 °C.

PREPARATION OF WORKING SOLUTION

1. Covipyte™ EN450 working solution
Dilute substrate stock solution at 1:200 in 20 mM Tris buffer (pH 7.5) or buffer of your choice. Use 50 μL of substrate solution per assay in a 96-well plate.

2. Coronavirus proteases dilution
Dilute the coronavirus proteases as desired.

SAMPLE EXPERIMENTAL PROTOCOL

Sample Protocol for One 96-well plate
  1. Add 50 μL of EACH protease dilution to respective wells of the assay plate.
  2. Add 50 μL of Covipyte™ EN450 working solution to each protease dilution.
  3. Monitor the fluorescence increase with a fluorescence plate reader at Ex/Em = 350/460 nm (cutoff 420nm).
For kinetic reading: Immediately start measuring fluorescence intensity continuously and record data every 5 minutes for 30-120 minutes.
For end-point reading: Incubate the reaction at a desired temperature for 30 to 120 minutes, protected from light. Then measure the fluorescence intensity.

Spectrum

Product family

NameExcitation (nm)Emission (nm)Extinction coefficient (cm -1 M -1)Correction Factor (280 nm)
Covidyte™ EN45033645559000.107

References

View all 2 references: Citation Explorer
Assessing activity and inhibition of Middle East respiratory syndrome coronavirus papain-like and 3C-like proteases using luciferase-based biosensors.
Authors: Kilianski, Andy and Mielech, Anna M and Deng, Xufang and Baker, Susan C
Journal: Journal of virology (2013): 11955-62
Thiopurine analogues inhibit papain-like protease of severe acute respiratory syndrome coronavirus.
Authors: Chou, Chi-Yuan and Chien, Chia-Hui and Han, Yu-San and Prebanda, Mojca Trstenjak and Hsieh, Hsing-Pang and Turk, Boris and Chang, Gu-Gang and Chen, Xin
Journal: Biochemical pharmacology (2008): 1601-9
Page updated on October 28, 2024

Ordering information

Price
Unit size
100 tests
1000 tests
Catalog Number
Quantity
Add to cart

Additional ordering information

Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
Technical SupportContact us
Purchase orderSend to sales@aatbio.com
ShippingStandard overnight for United States, inquire for international
Request quotation

Physical properties

Molecular weight

N/A

Solvent

DMSO

Spectral properties

Correction Factor (280 nm)

0.107

Extinction coefficient (cm -1 M -1)

5900

Excitation (nm)

336

Emission (nm)

455

Storage, safety and handling

H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22

Storage

Freeze (< -15 °C); Minimize light exposure
UNSPSC12171501

Platform

Fluorescence microplate reader

Excitation350 nm
Emission460 nm
Cutoff420 nm
Recommended plateSolid black

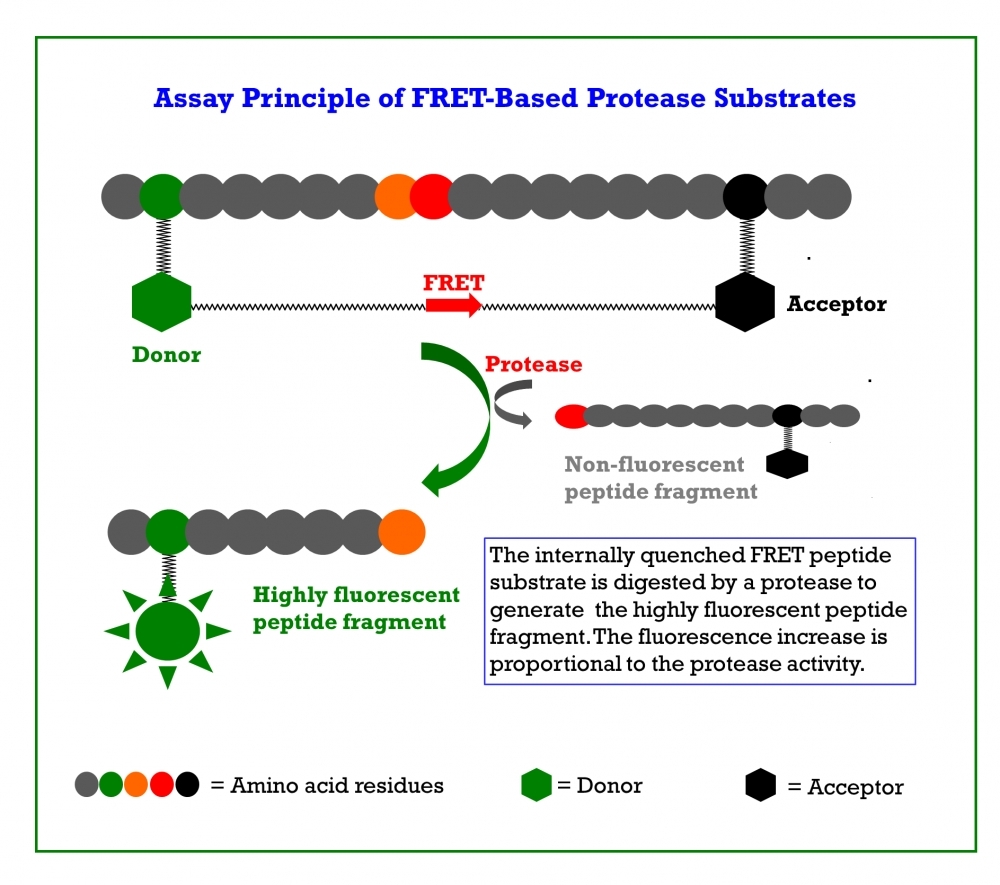

Covipyte&trade; EN450 is a peptide substrate containing 9 amino acid sequence (RELNGGAPI) that can be cleaved by coronavirus PLpro. The dark-FRET peptide contains Edans (donor) and Dabcyl (quencher) on the N-and C-terminals respectively where the fluorescence of Edans is effectively quenched by Dabcyl when the peptide is intact. When the peptide is hydrolyzed by coronavirus proteases, the Edans fragment generates significantly enhanced fluorescence since its fluorescence is no longer quenched by Dabcyl. The activity of coronavirus proteases can be effectively monitored by the fluorescence intensity of Edans. Covipyte&trade; EN450 is a convenient tool for screening and studying kinetics of PLpro inhibitors.
Covipyte&trade; EN450 is a peptide substrate containing 9 amino acid sequence (RELNGGAPI) that can be cleaved by coronavirus PLpro. The dark-FRET peptide contains Edans (donor) and Dabcyl (quencher) on the N-and C-terminals respectively where the fluorescence of Edans is effectively quenched by Dabcyl when the peptide is intact. When the peptide is hydrolyzed by coronavirus proteases, the Edans fragment generates significantly enhanced fluorescence since its fluorescence is no longer quenched by Dabcyl. The activity of coronavirus proteases can be effectively monitored by the fluorescence intensity of Edans. Covipyte&trade; EN450 is a convenient tool for screening and studying kinetics of PLpro inhibitors.
Covipyte&trade; EN450 is a peptide substrate containing 9 amino acid sequence (RELNGGAPI) that can be cleaved by coronavirus PLpro. The dark-FRET peptide contains Edans (donor) and Dabcyl (quencher) on the N-and C-terminals respectively where the fluorescence of Edans is effectively quenched by Dabcyl when the peptide is intact. When the peptide is hydrolyzed by coronavirus proteases, the Edans fragment generates significantly enhanced fluorescence since its fluorescence is no longer quenched by Dabcyl. The activity of coronavirus proteases can be effectively monitored by the fluorescence intensity of Edans. Covipyte&trade; EN450 is a convenient tool for screening and studying kinetics of PLpro inhibitors.
