Amplite® Universal Fluorimetric MMP Activity Assay Kit *Green Fluorescence*

The matrix metalloproteinases (MMPs) constitute a family of zinc-dependent endopeptidases that function within the extracellular matrix. These enzymes are responsible for the breakdown of connective tissues and are important in bone remodeling, the menstrual cycle and repair of tissue damage. While the exact contribution of MMPs to certain pathological processes is difficult to assess, MMPs appear to play a key role in the development of arthritis as well as in the invasion and metastasis of cancer. MMPs tend to have multiple substrates, with most family members having the ability to degrade different types of collagen along with elastin, gelatin and fibronectin. It is quite difficult to find a substrate that is selective to a single MMP enzyme. This kit is designed to check the general activity of a MMP enzyme. It can also be used to screening MMP inhibitors when a purified MMP enzyme is used. We also offer a few MMP enzyme of high activity.

Example protocol

AT A GLANCE

Protocol summary

  1. Add appropriate controls or test samples (50 µL)
  2. Pre-incubate for 10 - 15 minutes
  3. Add MMP Green™ substrate working solution (50 µL)
  4. Skip incubation step for kinetic reading or incubate for 30 to 60 minutes for end point reading
  5. Monitor fluorescence intensity at Ex/Em = 490/525 nm

Important notes
Thaw all the kit components at room temperature before starting the experiment. Prepare MMPs containing biological samples as desired.

PREPARATION OF WORKING SOLUTION

1. MMP Green™ Substrate working solution:
Add 50 μL of MMP Green™ Substrate (Component A) into 5 mL of Assay Buffer (Component C) to make a total volume of 5.05 mL of MMP Green™ substrate working solution.

2. MMP dilution:
Dilute MMPs to an appropriate concentration in Assay Buffer (Component C) if purified MMP is used. Note: MMP needs to be activated before use. Avoid vortexing the enzyme vigorously.

3. Inhibitors and compounds dilution:
Make dilutions of known MMPs inhibitors and test compounds as desired if you are screening MMPs inhibitors.

SAMPLE EXPERIMENTAL PROTOCOL

Table 1. Layout of the appropriate controls (as desired) and test samples in a 96-well microplate. SC= Substrate Control, IC= Inhibitor Control, VC=Vehicle Control, TC= Test Compound Control, TS=Test Samples.

SCSC......
ICIC......
VCVC
TCTC
TSTS
......
......


Table 2. Reagent composition for each well. Some strongly fluorescent test compounds may result in false-positive results. Make the total volume of all the controls to 50 µL for a 96-well plate or 20 µL for a 384-well plate by using Assay Buffer (Component C).

WellVolumeReagent
SC50 µLAssay Buffer
IC50 µLMMP dilutions and known MMPs inhibitors
VC50 µLMMP dilution and vehicle used to deliver test compound
TC50 µLMMP-containing assay buffer and test compound
TS50 µLMMP dilution with test compound

Table 3. Protocols for MMP activation.

MMPsActivated by treating with
MMP-1 (collagenase)1 mM APMA (diluted component C) at 37 °C for 3 hr
MMP-2 (gelatinase)1 mM APMA (diluted component C) at 37 °C for 1 hr
MMP-3 (stromelysin)1 mM APMA (diluted component C) at 37 °C for 24 hr
MMP-7 (matrilysin, PUMP-1)1 mM APMA (diluted component C) at 37 °C for 20 min - 1 hr
MMP-8 (neutrophil collagenase)1 mM APMA (diluted component C) at 37 °C for 1 hr
MMP-9 (92 kDa gelatinase)1 mM APMA (diluted component C) at 37 °C for 2 h
MMP-10 (stromelysin-2)1 mM APMA (diluted component C) at 37 °C for 24 hr
MMP-11 (stromelysin-3)Already in active form. No APMA treatment is necessary
MMP-12 (macrophage elastase)1 mM APMA (diluted component C) at 37 °C for 2 hr
MMP-13 (collagenase-3)1 mM APMA (diluted component C) at 37°C for 40 min
MMP-141 mM APMA (diluted component C) at 37°C for 2 - 3 hr
  1. Prepare MMPs containing biological samples as desired.

  2. To activate pro-MMPs, first dilute 1 M APMA (Component B) with Assay Buffer (Component C) at 1:500 to get 2 mM APMA working solution (2X). Note: APMA belongs to organic mercury. Handle with care! Dispose it according to local regulations.

    Next, incubate the MMP containing-samples or purified MMPs with equal volume of 2 mM APMA working solution (2X). Refer to Table 3 for incubation time. Activate MMPs immediately before the experiment. Note: Keep enzyme-containing samples on ice. Avoid vigorously vortexing the enzyme. Prolonged storage of the activated enzyme will deactivate the enzyme. For enzyme activation, it is preferably activated at higher protein concentration. After activation, you may further dilute the enzyme.

  3. Prepare controls and test samples (TS) according to the layout provided in Tables 1 and 2. For a 384-well plate, use 20 µL of reagent per well instead of 50 µL.

  4. Pre-incubate the plate at a desired temperature for the enzyme reaction (e.g. 25 °C or 37 °C) for 10 - 15 min if you are screening MMPs inhibitors.

  5. Add 50 µL (96-well) or 20 µL (384-well) of MMP Green™ substrate working solution to the sample and control wells of the assay plate. Mix the reagents well.

  6. Monitor the fluorescence intensity with a fluorescence plate reader at Ex/Em = 490/525 nm.

    For kinetic reading: Immediately start measuring fluorescence intensity and continuously record data every 5 minutes for 30 to 60 minutes.

    For end-point reading: Incubate the reaction at room temperature for 30 to 60 minutes, kept from light if possible. Mix the reagents well, and then measure the fluorescence intensity.

Spectrum

Product family

Citations

View all 29 citations: Citation Explorer
Targeting cancer-derived extracellular vesicles by combining CD147 inhibition with tissue factor pathway inhibitor for the management of urothelial cancer cells
Authors: Boddu, Vijay Kumar and Zamzow, Piet and Kramer, Mario Wolfgang and Merseburger, Axel S and Gorantla, Sivahari Prasad and Klinger, Matthias and Cramer, Lena and Sauer, Thorben and Gemoll, Timo and von Bubnoff, Nikolas and others,
Journal: Cell Communication and Signaling (2024): 1--14
RNA-binding protein-regulated fibronectin is essential for EGFR-activated metastasis of head and neck squamous cell carcinoma
Authors: Shieh, Jiunn-Min and Chang, Ting-Wei and Wang, Jing-He and Liang, Song-Ping and Kao, Pei-Lu and Chen, Liang-Yi and Yen, Chia-Jui and Chen, Yun-Ju and Chang, Wen-Chang and Chen, Ben-Kuen
Journal: The FASEB Journal (2023): e23206
Influence of Dinitrosyl Iron Complexes on the Activity of Enzymes, Indicators of Cardiovascular Diseases
Authors: Akentieva, Natalia and Sanina, Natalia and Gizatullin, Artur and Shkondina, Natalia and Andreeva, Anna and Shram, Stanislav and Aldoshin, Sergei
Journal: (2022)
Octenidine-based hydrogel shows anti-inflammatory and protease-inhibitory capacities in wounded human skin
Authors: Seiser, Saskia and Janker, Lukas and Zila, Nina and Mildner, Michael and Rakita, Ana and Matiasek, Johannes and Bileck, Andrea and Gerner, Christopher and Paulitschke, Verena and Elbe-B{\"u}rger, Adelheid
Journal: Scientific Reports (2021): 1--13
Page updated on December 17, 2024

Ordering information

Price
Unit size
Catalog Number13510
Quantity
Add to cart

Additional ordering information

Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
Technical SupportContact us
Purchase orderSend to sales@aatbio.com
ShippingStandard overnight for United States, inquire for international
Request quotation

Spectral properties

Excitation (nm)

494

Emission (nm)

515

Storage, safety and handling

H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
UNSPSC12352200

Platform

Fluorescence microplate reader

Excitation490 nm
Emission525 nm
Cutoff515 nm
Recommended plateSolid black

Components

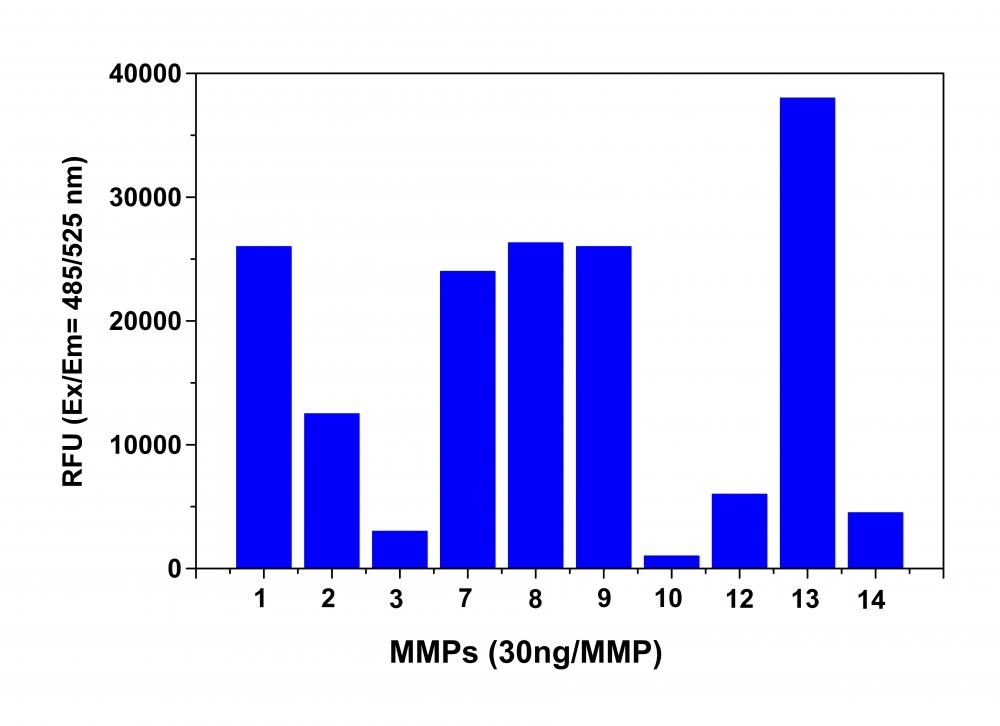

Detection of MMPs activity using Amplite® Universal Fluorimetric MMP Activity Assay Kit. The APMA-activated MMPs, 30 ng each, were mixed with MMP Green™ substrate. The fluorescence signal was monitored one hour after starting the the reaction by using a NOVOStar microplate reader (BMG Labtech) with a filter set of Ex/Em = 490/525 nm. The reading from all wells was subtracted with the reading from substrate control, which contains MMP Green™ substrate but no MMPs. The MMP Green™ substrate can detect the activity of sub-nanogram of all MMPs (n=3).
